ELEWIND 12mm metal push button switch momentary 1NO with ring light(PM122F-10E-S)
Metal push button, individually developed by our company, has dozens of proprietary intellectual property rights. There are many types, such as indicator, push button, latching push button, illuminated push button, selector, illuminated selector, key lock switch, emergency stop switch and buzzer.
With the effort of all the stuff, metal push buttons develop to more series and more types, and they are gradually accepted by well-known enterprises home and abroad (especially some large comprehensive enterprises in Europe and America). Push buttons are widely used in large mechanical equipment, armaria, automo bile operation, bathroom corollary equipment, office equipment, hotel decoration, outdoor digital product and computer equipment. -

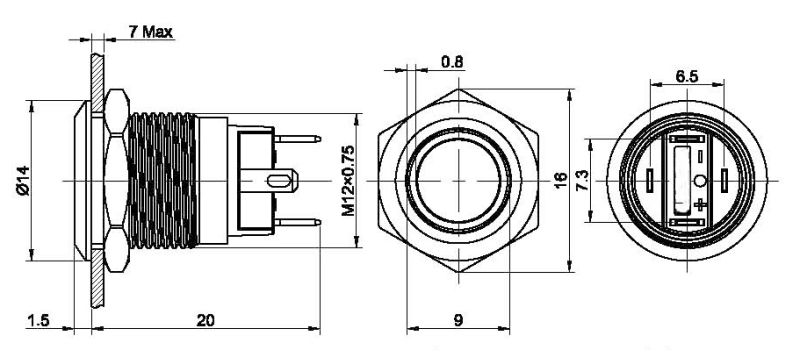

ELEWIND 12mm wiring metal push button switch momentary 1NO with light(PM121F-10E/J/R/12V/S)
Part number:PM121F-10E/J/R/12V/S
Install diameter:12mm
Switch rating: 2A/36VDC
Shape: Flat head
Function: Momentary (1NO)
Terminal: 4 Pin terminal or with 15cm wiring cable
Crust material: stainless steel
LED color: Ring illuminated red color，blue,Green,Yellow,White,Orange
Voltage: from 2.8V to 48V
IP rating: IP65
Temperature: – 40 to 75 Degree
-

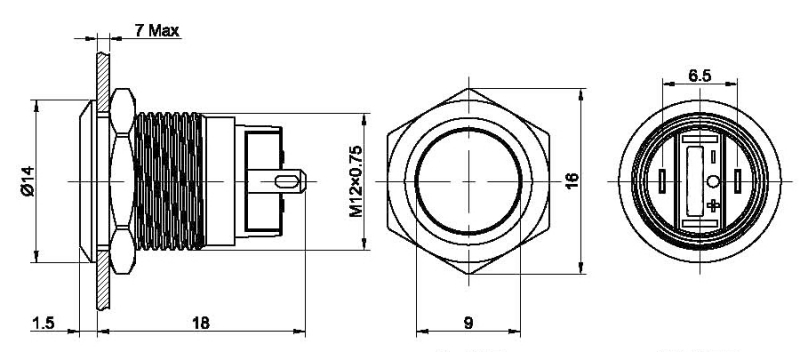

ELEWIND 12mm Black vandal resistant metal push button switch(PM121F-10/J/A)
Part number:PM121F-10/J/A
Install diameter:12mm
Switch rating: 2A/36VDC
Shape: Flat head
Function: Momentary (1NO)
Terminal: 2 Pin terminal
Crust material: Black aluminium
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 12mm vandal resistant stainless steel Momentary (1NO) metal push button switch(PM121H-10/J/S)
Part number:PM121H-10/J/S
Install diameter:12mm
Switch rating: 2A/36VDC
Shape: Raised head(Flat head can be choose)
Function: Momentary (1NO)
Terminal: 2 Pin terminal
Crust material: stainless steel or black aluminium
IP rating: IP65
Temperature: – 40 to 75 Degree
-

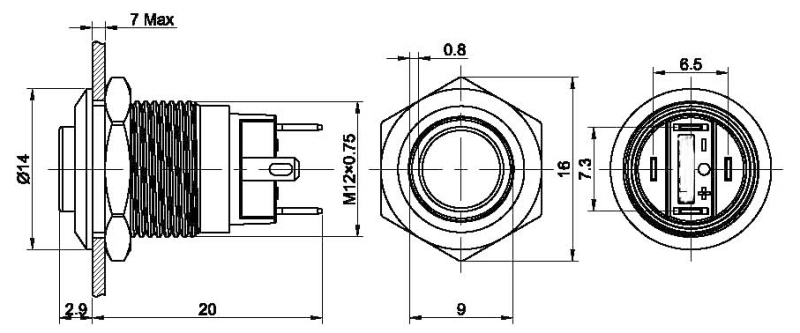

ELEWIND raised button 12mm metal push button switch with light(PM121H-10E/J/R/12V/S)
Part number:PM121H-10E/J/R/12V/S
Install diameter:16mm
Switch rating: 2A/36VDC
Shape: Raised head(Flat head can be choose)
Function: Momentary (1NO)
Terminal: 4 Pin terminal
Crust material: stainless steel or black aluminium
LED color: Ring illuminated red color,blue,Green,Yellow,White,Orange
Voltage: from 2.8V to 48V
IP rating: IP65
Temperature: – 40 to 75 Degree
-

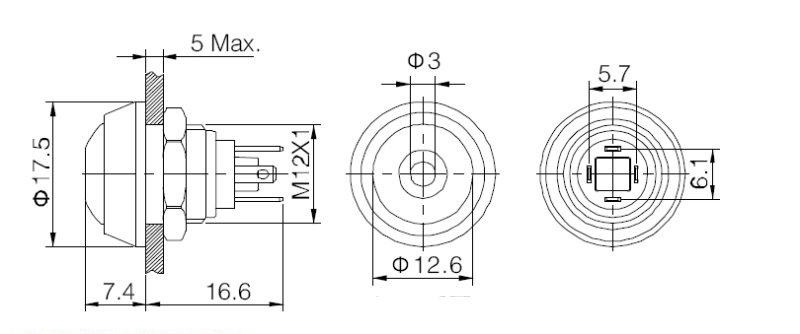

ELEWIND 12mm Dot illuminated push button switch (PM121B-10D/J/G/2.8V/S)
Part number:PM121B-10D/J/G/2.8V/N
Install diameter:12mm
Switch rating: 2A/36VDC
Shape: Domed head
Button color and LED color: Green
( Other color can be choose:Red,Yellow,Blue,White,black)
LED voltage: 2.8V (5V,6V,12V,24V need connect outside resistor)
Function: Momentary (1NO)
Terminal: Pin terminal
Crust material: Nickel-plated brass or stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 12mm metal Latching push button switch with light(PM121-10E/J/12V/N)
Part number:PM121H-10ZE/J/12V
Install diameter:16mm
Switch rating: 2A/36VDC
Shape: Raised head(Flat head can be choose)
Function: Momentary (1NO)
Terminal: 4 Pin terminal
LED color: Ring illuminated red color,blue,Green,Yellow,White
Voltage:12-24V
IP rating: IP65
Temperature: – 25 to 75 Degree
-

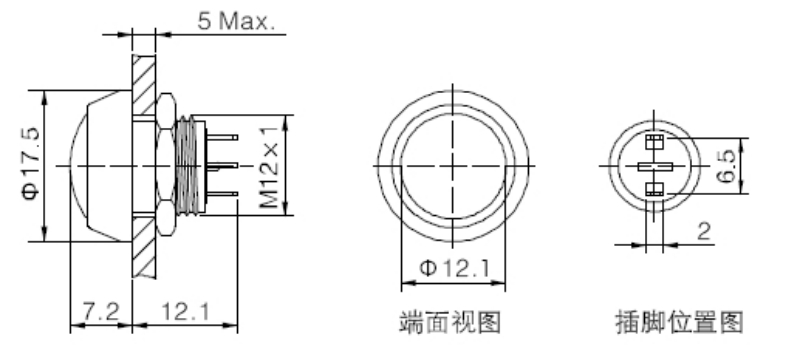

ELEWIND 12mm Dome head Golden color Aluminum aluminum anodized push button switch (PM121B-10/J/A/Golden color)
Part number:PM121B-10/J/A/Golden color
Install diameter:12mm
Switch rating: 2A/36VDC
Shape: Domed head
Button color: Golden color
Function: Momentary (1NO)
Terminal: Pin terminal
Crust material: Golden color Aluminum
IP rating: IP65
Temperature: – 40 to 75 Degree
-

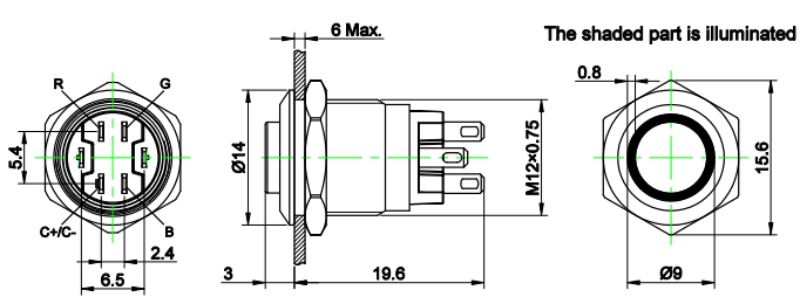

12mm anti vandal push button switch 3 -color RGB led color IP67 waterproof (PM121F-10E/J/RGB/12V/S)
Part number:PM121F-10E/J/RGB/12V/S
Install diameter:12mm
Switch rating: 2A/36VDC
Shape: Flat head
Function: Momentary (1NO)
Terminal: 6 Pin terminal
Crust material: stainless steel or black aluminium
LED color: Ring illuminated color
Voltage:12V
IP rating: IP65 or IP67
Temperature: – 40 to 75 Degree
-
ELEWIND 12mm square Momentary 1NO black body or silver body push button switch (PM121S-10/Y/A , PM121S-10/W/T )
Part number:PM121S-10/Y/A
Install diameter:12mm
Switch rating: 2A/36VDC
Shape: Square
Button color: Yellow
(Other color you can choose for Green,White,Red,Blue and Black)
Function: Momentary (1NO)
Terminal:Screw terminal or pin terminal
Crust material: Black color Aluminum
IP rating: IP65
Temperature: – 40 to 75 Degree
-

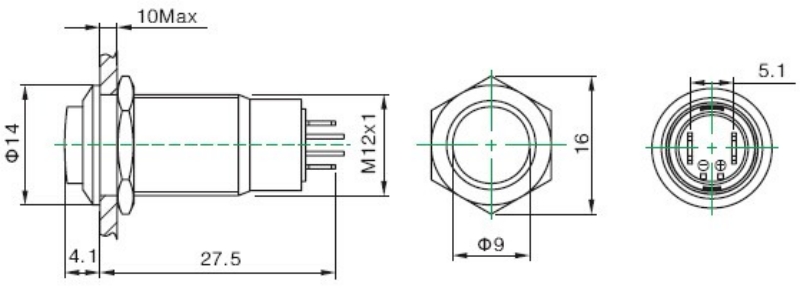

ELEWIND 12mm latching type push button switch (PM121H-10Z/J/S)
Part number:PM121H-10Z/J/S
Install diameter:12mm
Switch rating: 1A/36VDC
Shape: High flat head
Function: Latching (1NO)
Terminal: Pin terminal
Crust material: Stainless steel
Temperature: – 40 to 75 Degree
-
ELEWIND 12mm metal push button switch with light(PM121H-10D/J/G/12V/S)
Part number:PM121H-10D/J/G/12V/S
Install diameter:16mm
Switch rating: 2A/36VDC
Shape: Raised head(Flat head can be choose)
Function: Momentary (1NO)
Terminal: 4 Pin terminal
Crust material: stainless steel or black aluminium
LED color: Green or other led color
Voltage:12V or other voltage
IP rating: IP65
Temperature: – 40 to 75 Degree
