RGB indicator light
-

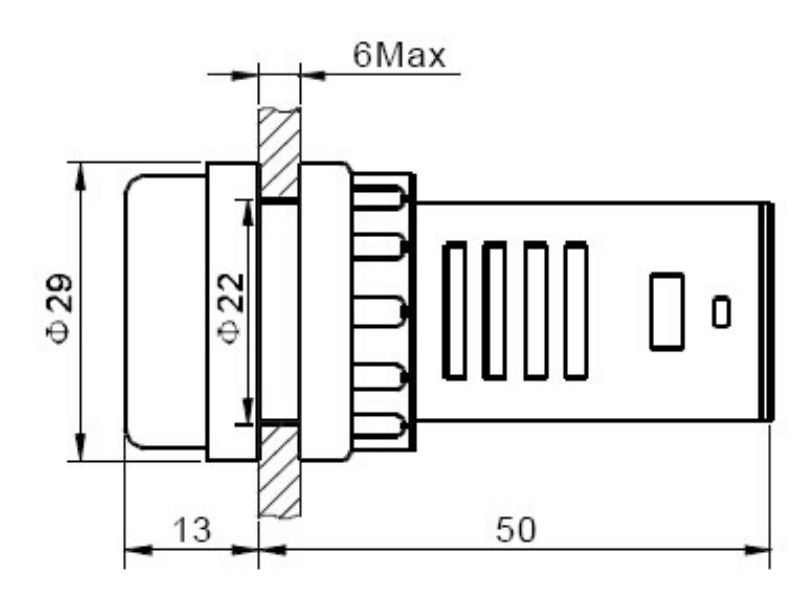

ELEWIND 22MM red and green two dual color indicator light signal lamp pilot lamp (AD16-22SS/R-G/12V)
ELEWIND 22mm Two color, dual led Signal lamp (AD16-22SS/R-G/12V)
Part number : AD16-22SS/R-G/12V
Led color and voltage: red-green dual color 12V
Install diameter: 22mm Shape: FLAT HEAD Cap color RED-green (Other color pls contact us) Function: Signal lamp Terminal: 3 Screw terminal, Switch Rating: 10A/250V Operation Temperature: -40 to 75 Degree If you need with light pls contact us.
-
ELEWIND 19mm three color red green blue LED Indicator light signal lamp under water IP68 (PM191F-E/RGB/12V/S With 2M cable)
ELEWIND LED Indicator work under water IP68 (PM191F-E/RGB/12V/S With 2M cable)
Part number:PM191F-E/RGB/12V/S With 2M cable
Install diameter:19mm
Shape: Flat head
Function: Pilot Lamp
Crust material: Stainless steel crust
Terminal: 2M cable, 4 Wires
Led Color:Red-Green-BLUE
Voltage: 12V
Temperature: – 40 to 75 Degree
-

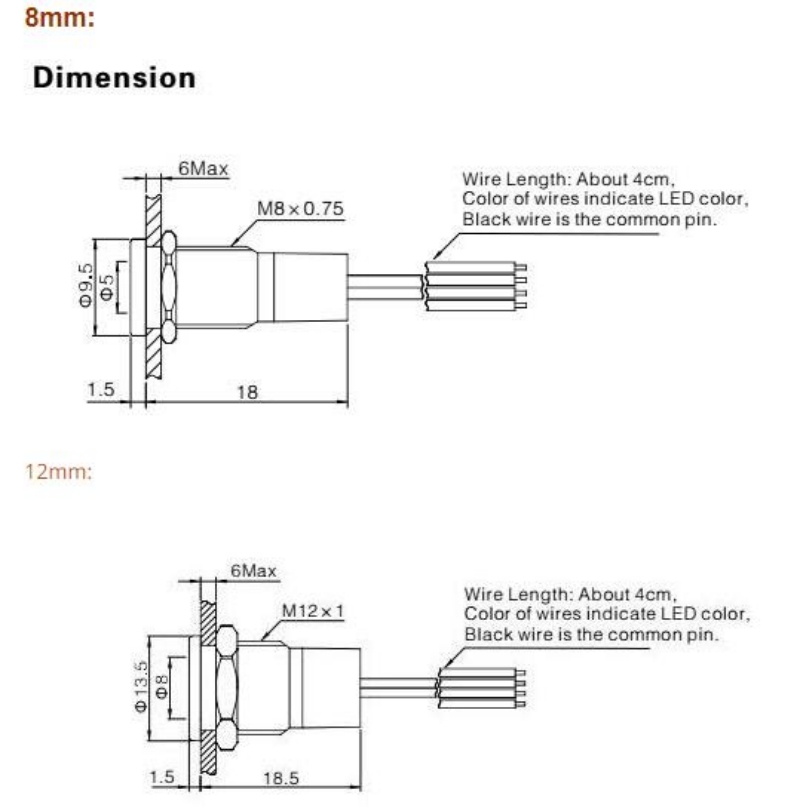

ELEWIND flat head 8mm 10MM 12MM metal IP67 sealed RGB three color led indicator light signal pilot lamp with 15cm cable

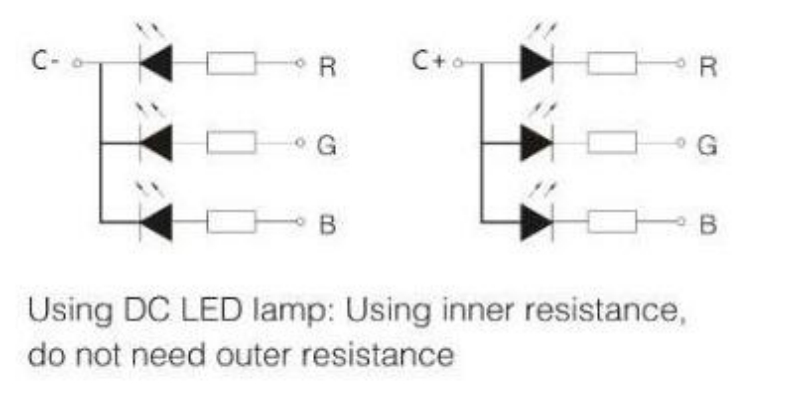

The standard LED type is Common pin in anode, if you want use common pin in cathode pls contact us first.
Part number:PM8T-D/Y/42RGB/12-24V/Stainless steel with 4cm cable
Install diameter:8mm
Shape: Flat head
Function: LED indicator
Crust material: Stainless steel/Black surface/Nickel plated brass for you choose
Terminal: 4 cable with 4cm length
Led Color:Red,green, blue
IP rating: IP67 waterproof can install outdoor or under the water.
Voltage: from 6V to 48V
Temperature: – 40 to 75 Degree
-

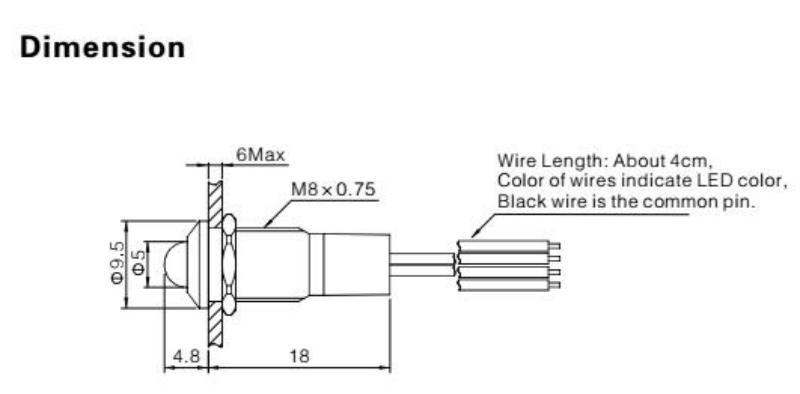

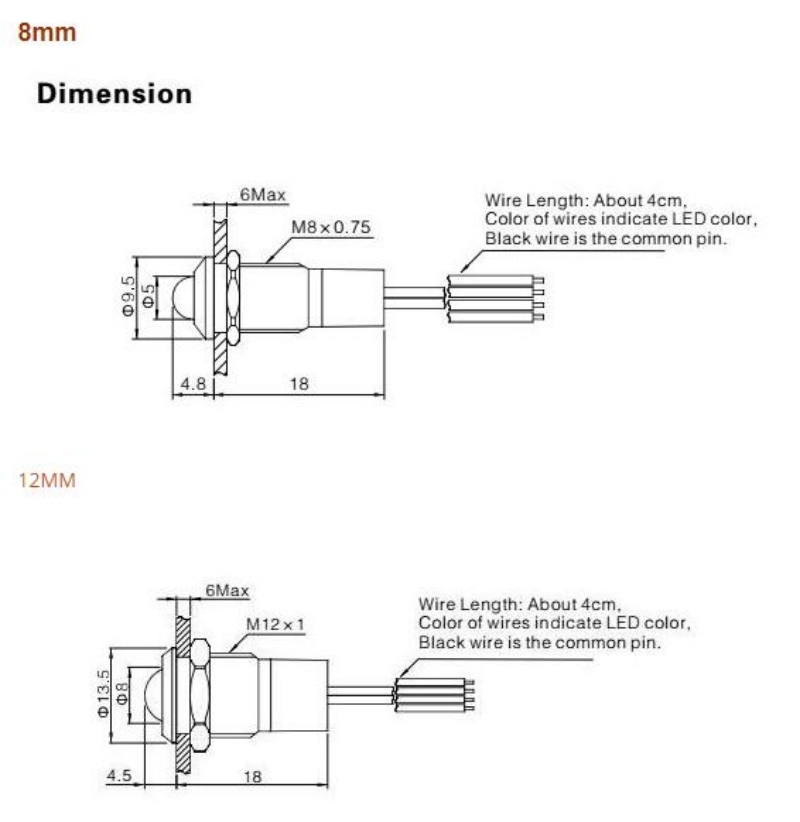

ELEWIND domed head 8mm 10MM 12MM metal IP67 sealed RGB three color led indicator light signal pilot lamp with 15cm cable
The standard LED type is Common pin in anode, if you want use common pin in cathode pls contact us first.
Part number:PM8G-D/Y/42RGB/12-24V/Stainless steel with 4cm cable
Install diameter:8mm
Shape:Domed head
Function: LED indicator
Crust material: Stainless steel/Black surface/Nickel plated brass for you choose
Terminal: 4 cable with 4cm length
Led Color:Red,green, blue
IP rating: IP67 waterproof can install outdoor or under the water.
Voltage: from 6V to 48V
Temperature: – 40 to 75 Degree
-

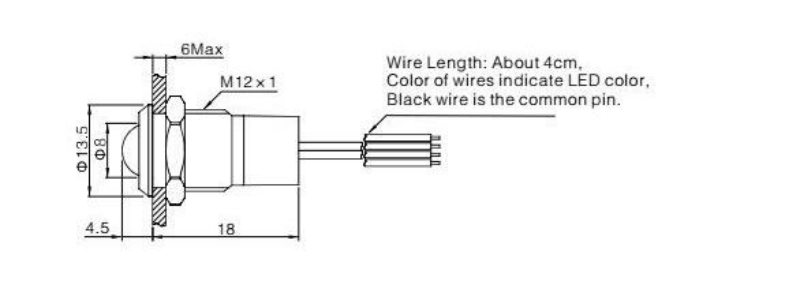

ELEWIND domed head 8mm 10MM 12MM metal IP67 sealed RGB three color led indicator light signal pilot lamp with 15cm cable
The standard LED type is Common pin in anode, if you want use common pin in cathode pls contact us first.
Part number:PM8G-D/Y/42RGB/12-24V/Stainless steel with 4cm cable
Install diameter:8mm
Shape:Domed head
Function: LED indicator
Crust material: Stainless steel/Black surface/Nickel plated brass for you choose
Terminal: 4 cable with 4cm length
Led Color:Red,green, blue
IP rating: IP67 waterproof can install outdoor or under the water.
Voltage: from 6V to 48V
Temperature: – 40 to 75 Degree
-

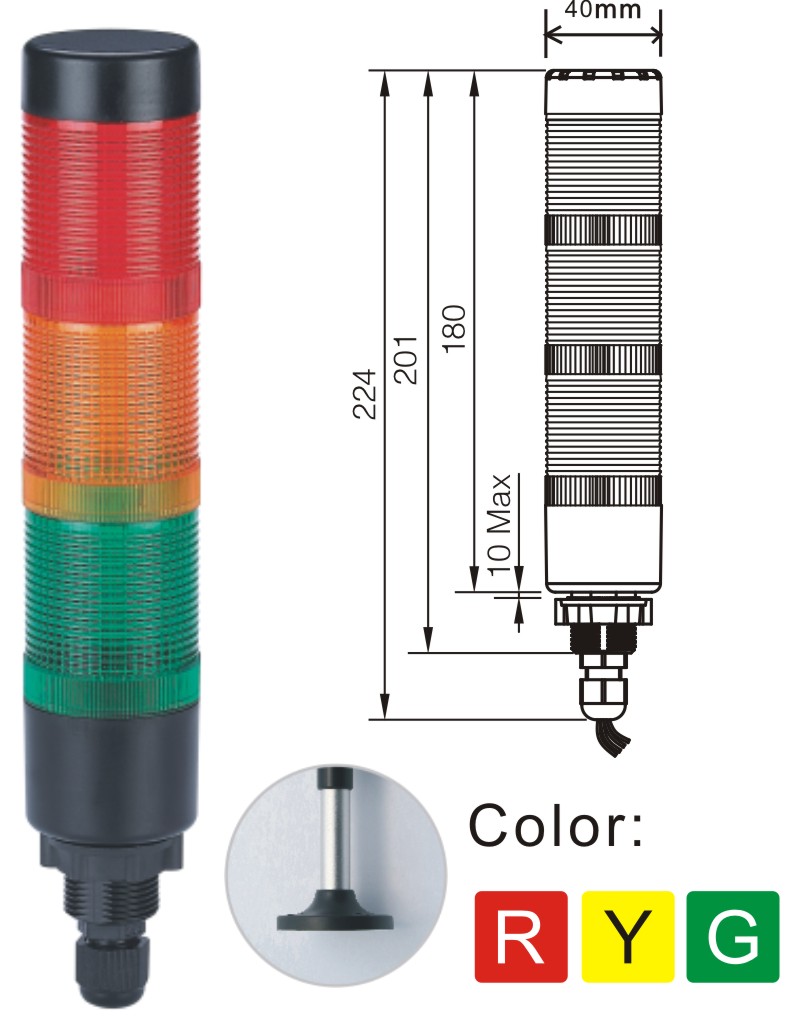

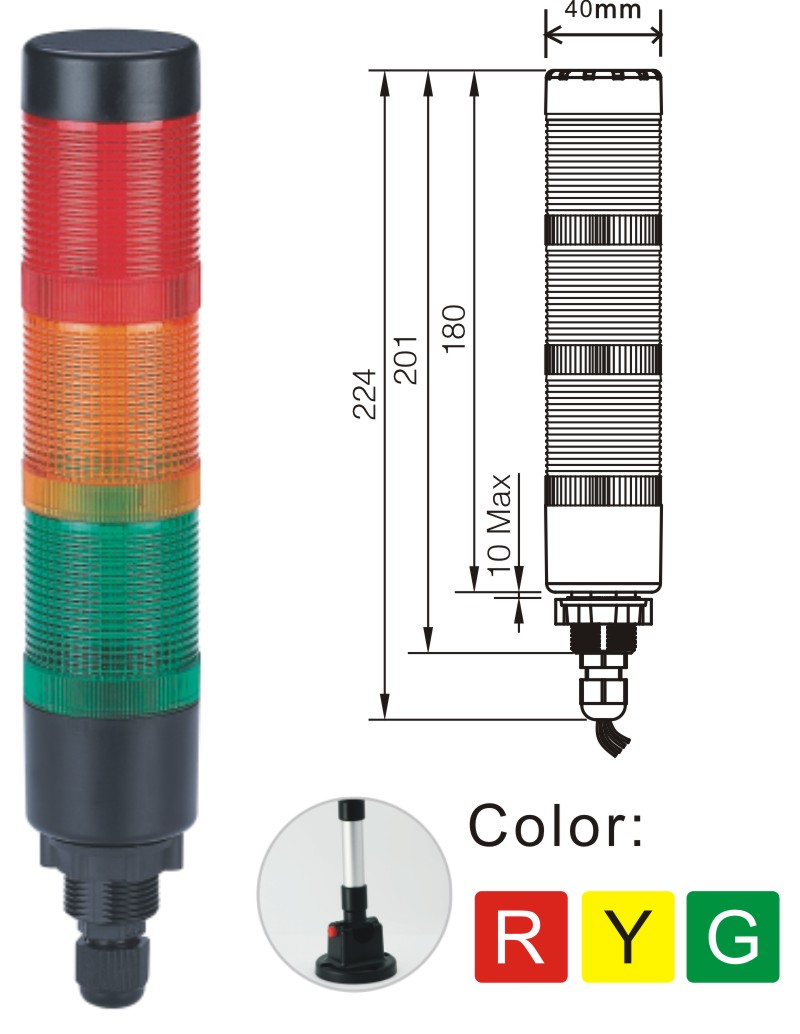

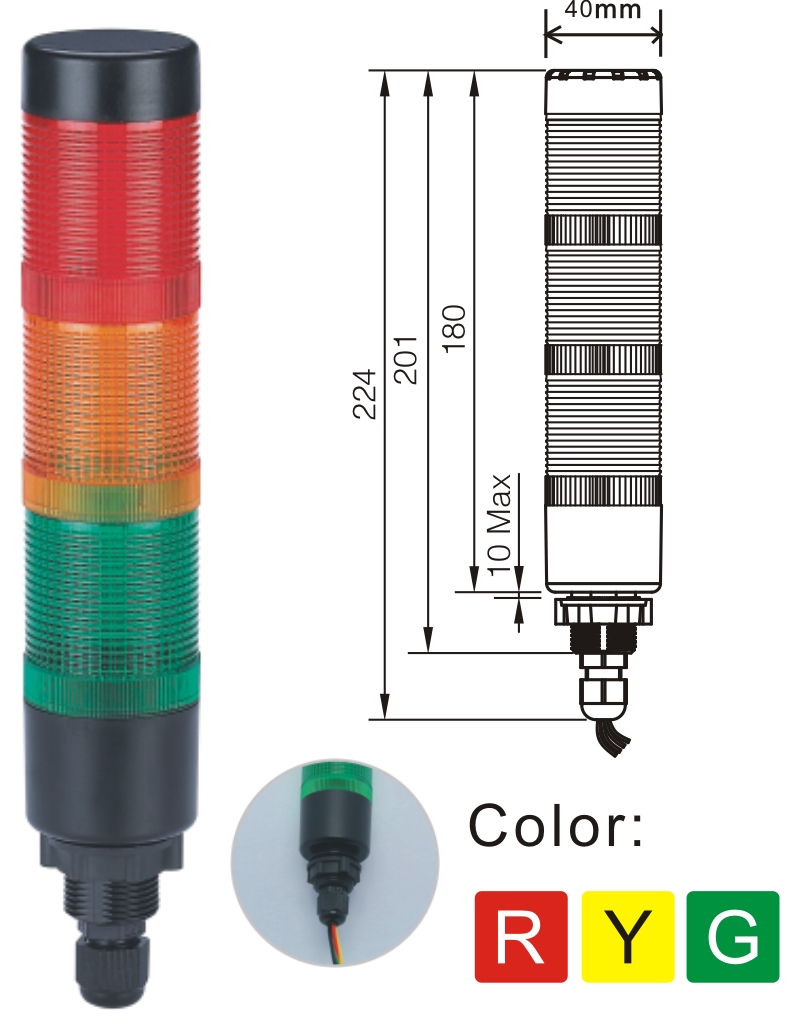

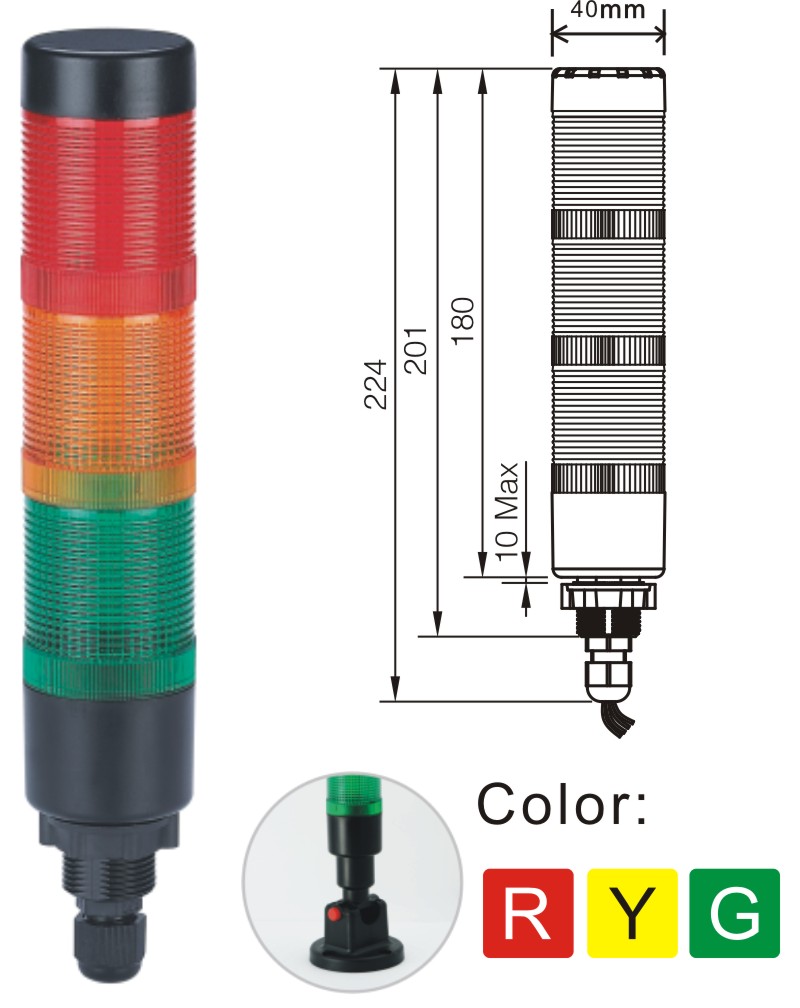

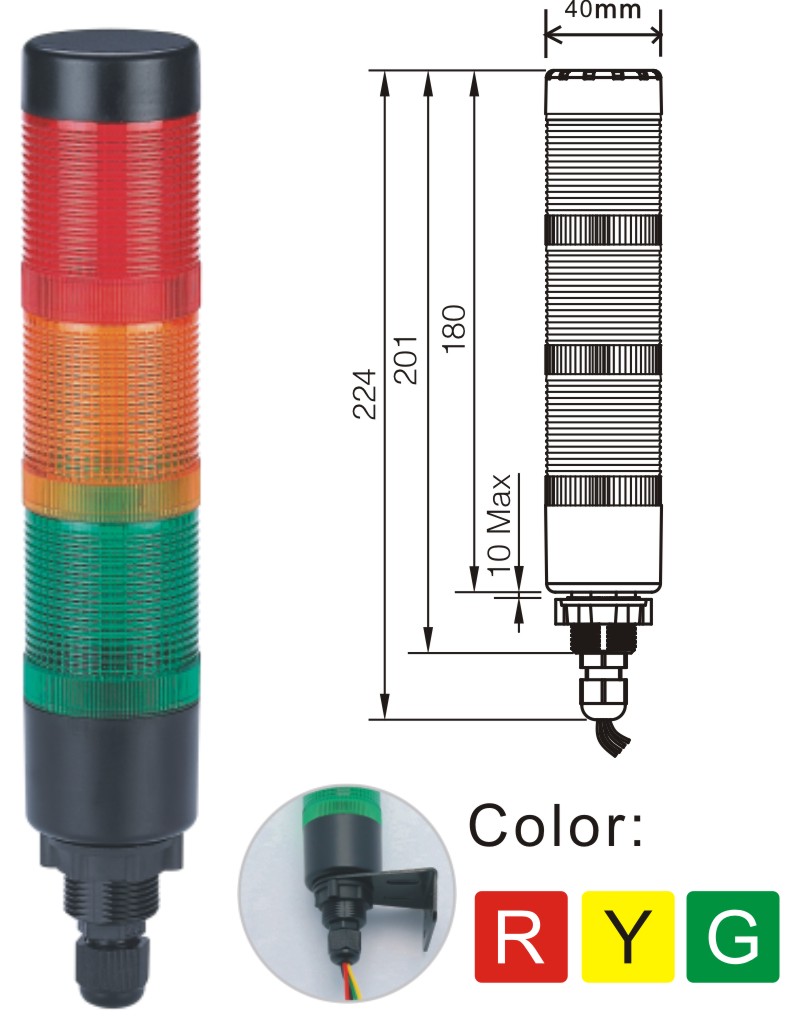

ELEWIND 40mm Signal Tower Light With 3 Layer flash light with buzzer or No buzzer(YWJD-40D/3/RYG/24-220V)

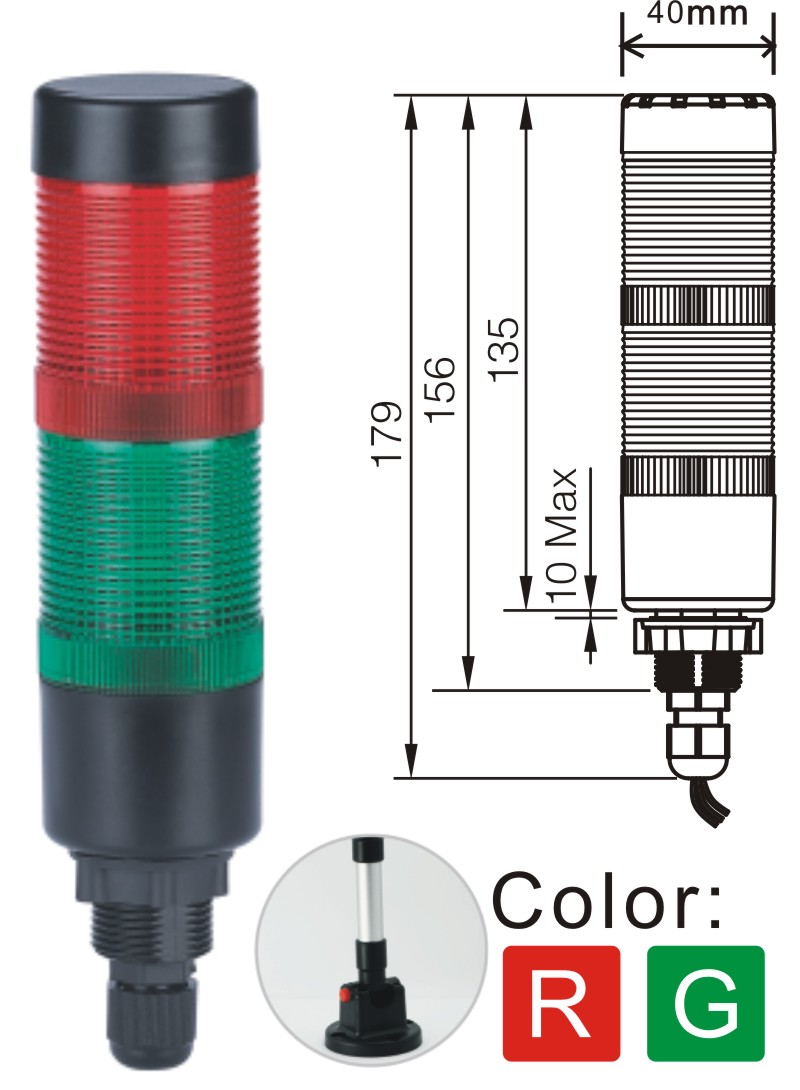

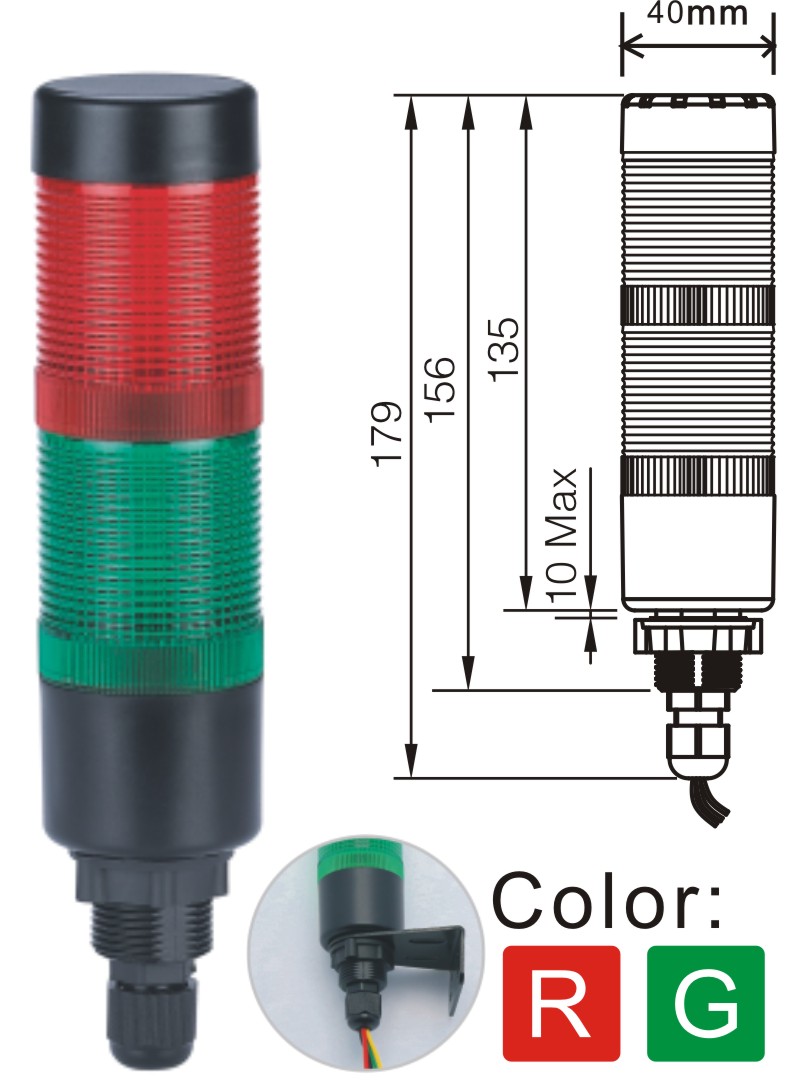

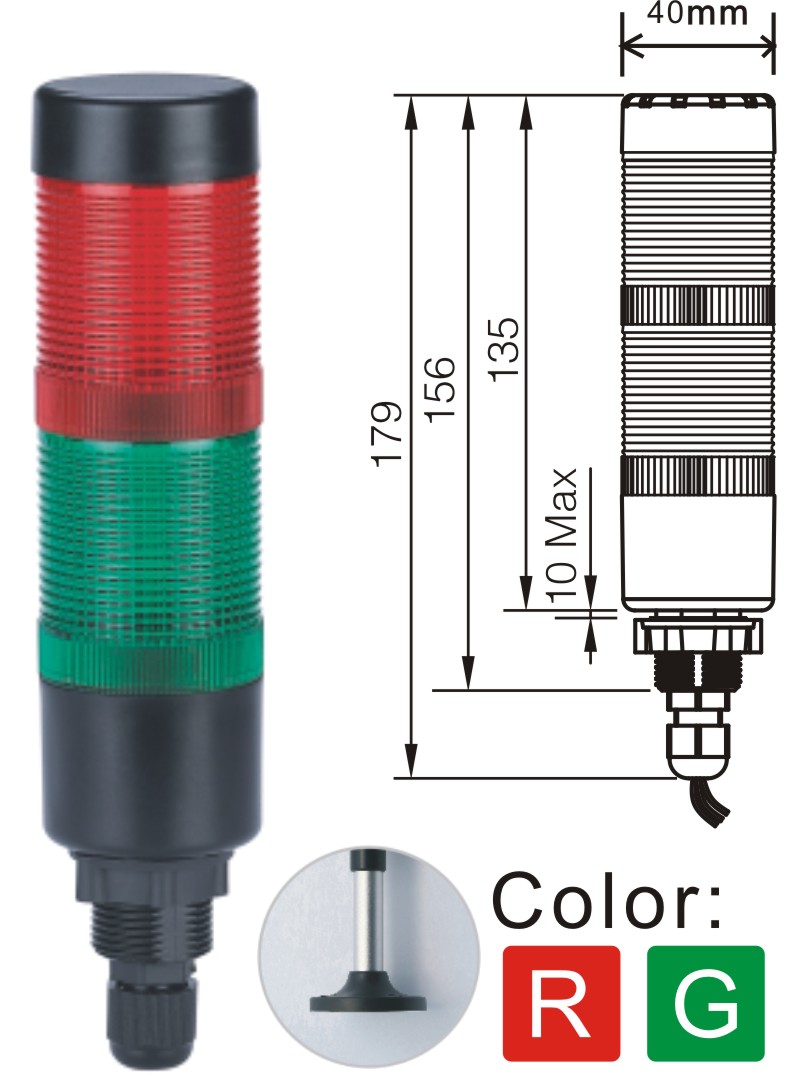

ELEWIND 40mm signal tower Incontinous light of 2 layer(YWJD-40/D/2/RG/24V)
Operating Temperature: -40 degree ~ 75 degree
Operating Humidity: ≤98%
Altitude : ≤2000m Vibration resistance: 50Hz, vibration about1.2mm
continuous operating time: 40000hours for LED continuous light
25000hours for LED flast light
Sound pressure level:80~90dB in 1 meter
-

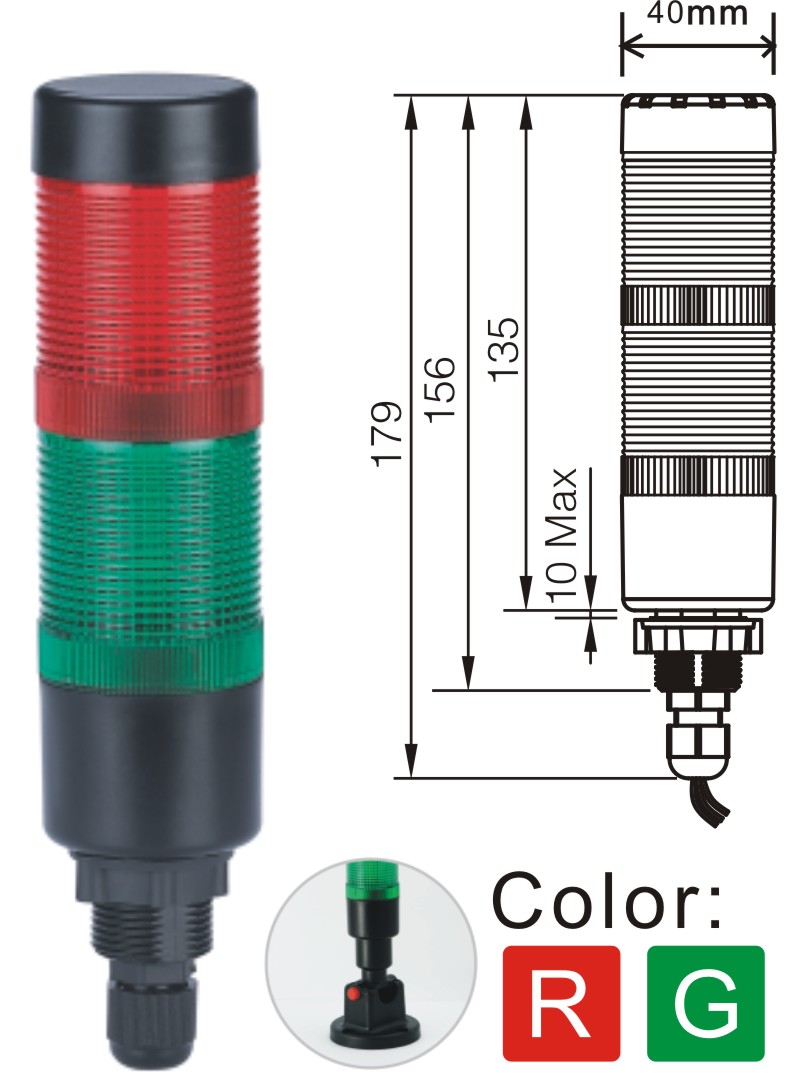

ELEWIND 40mm LED Signal Tower Incontinous Light or Continous Light With Buzzer(YWJD-40A/D/2/RG/24V to 220V)
LEWIND 40mm signal tower Incontinous light of 2 layer(YWJD-40/D/2/RG/24V)
Operating Temperature: -25 degree ~ 55 degree
Operating Humidity: ≤98%
Altitude : ≤2000m Vibration resistance: 50Hz, vibration about1.2mm
continuous operating time: 40000hours for LED continuous light
25000hours for LED flast light
Sound pressure level:80~90dB in 1 meter
-
-

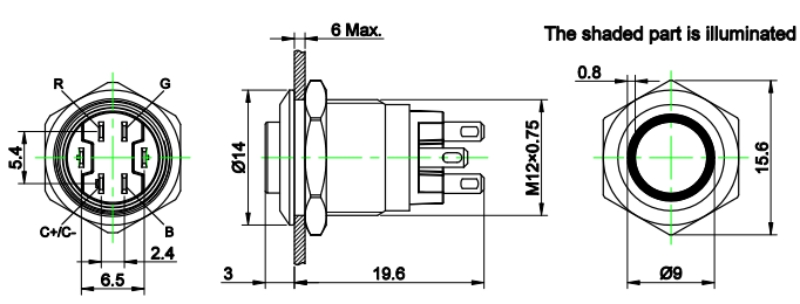

12mm anti vandal push button switch 3 -color RGB led color IP67 waterproof (PM121F-10E/J/RGB/12V/S)
Part number:PM121F-10E/J/RGB/12V/S
Install diameter:12mm
Switch rating: 2A/36VDC
Shape: Flat head
Function: Momentary (1NO)
Terminal: 6 Pin terminal
Crust material: stainless steel or black aluminium
LED color: Ring illuminated color
Voltage:12V
IP rating: IP65 or IP67
Temperature: – 40 to 75 Degree
