piezo switch
-

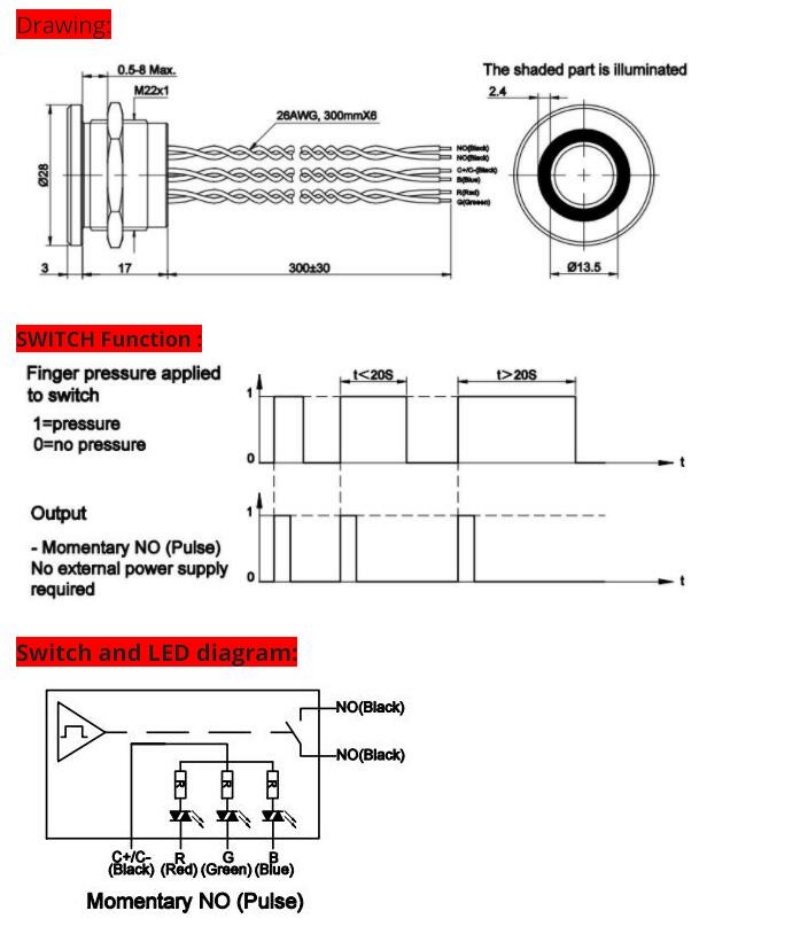

22MM RGB three color piezo switch, high waterproof level IP68,316L stainless steel crust (22mm,PS223P10YSS1RGB24T,Rohs,CE)
22MM RGB three color piezo switch, high waterproof level IP68,316L stainless steel crust (22mm,PS223P10YSS1RGB24T,Rohs,CE)
RGB color , Common pin in anode.
Part number: PS223P10YSS1RGB24T
Install diameter : 22mm hole diameter
Rated current : 200mA
Rated voltage : 24VAC/DC
Crust Material : Stainless steel 316L
Crust color: Stainless steel
LED COLOR: RGB 3 color , Common pin in anode.
LED Voltage:5V,12V,24V
IP rated : IP68
Life : 5 Million
Standard : Rohs, CE
Operation force: 2 to 6 (N)
Operation temperature: – 40 to +75 degree
Wire connection:
Multi-wire leads section 0.22mm2 length 300mm,twisted by pair.
-

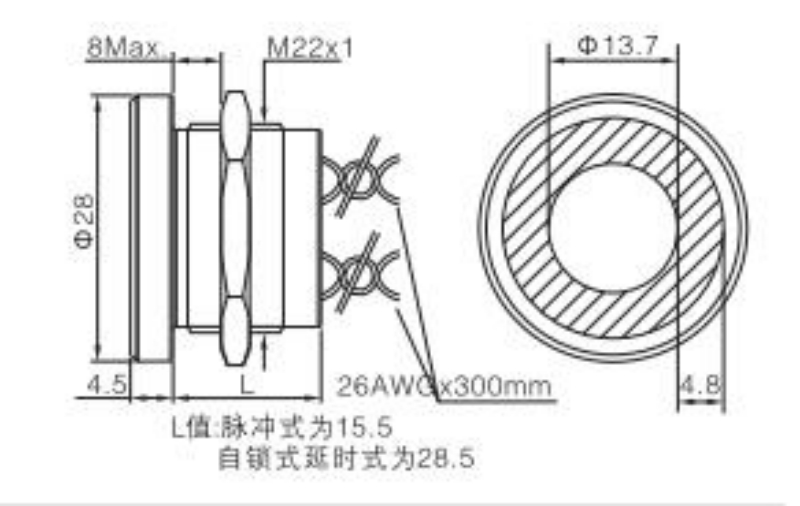

ELEWIND 22mm Stainless steel IP68 Waterproof Large ring illuminated piezo switch (PS225P10YSS1G05L With 1M Cable,Rohs,CE)
ELEWIND 316L Stainless steel IP68 Waterproof Large ring illuminated piezo switch
Part number: PS225P10YSS1G05L With 1M Cable
Install diameter : 22mm hole diameter
Rated current : 200mA
Rated voltage : 24VAC/DC
Crust Material : Stainless steel 316L
LED COLOR:Green
LED Voltage:5V,12v,24v
IP rated : IP68
Life : 5 Million
Standard : Rohs, CE
Operation force: 2 to 6 (N)
Operation temperature: – 40 to +75 degree
Wire connection:
Multi-wire leads section 0.22mm2 length 300mm,twisted by pair.
the black and white wire for switch connect, the brown and blue wire for led, No direction.
-

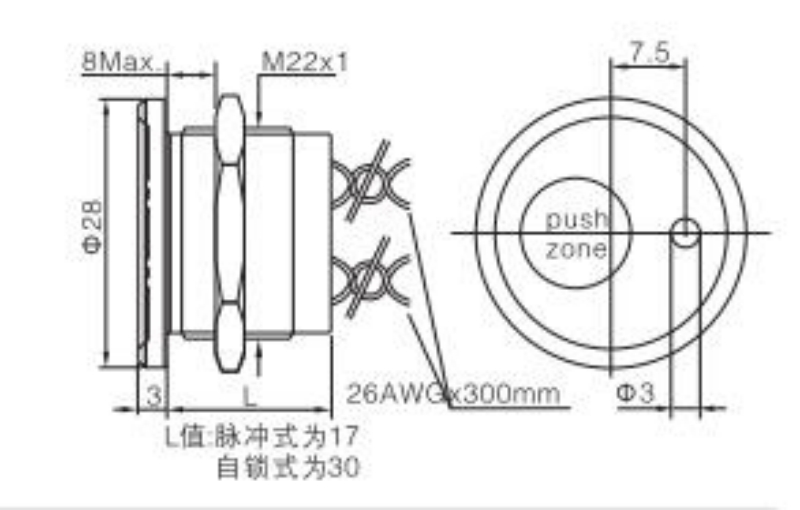

ELEWIND 22MM Dot illuminated Silver aluminum alloy piezo switch push button switch (PS223Z10YNT1R24D,Rohs,CE)
ELEWIND 22MM Dot illuminated piezo switch(22mm,PS223Z10YNT1R24D,Rohs,CE)
Part number: PS223Z10YNT1R24D
Install diameter : 22mm hole diameter
Rated current : 200mA
Rated voltage : 24VAC/DC
Crust Material : Aluminum anodized
Crust color: Silver(Other color: Red black Green blue gold)
LED COLOR:Red(Other color : Green,Blue,Yellow,Orange,White)
LED Voltage:5V,12V,24V
IP rated : IP68
Life : 5 Million
Standard : Rohs, CE
Operation force: 2 to 6 (N)
Operation temperature: – 40 to +75 degree
Wire connection:
Multi-wire leads section 0.22mm2 length 300mm,twisted by pair.
-

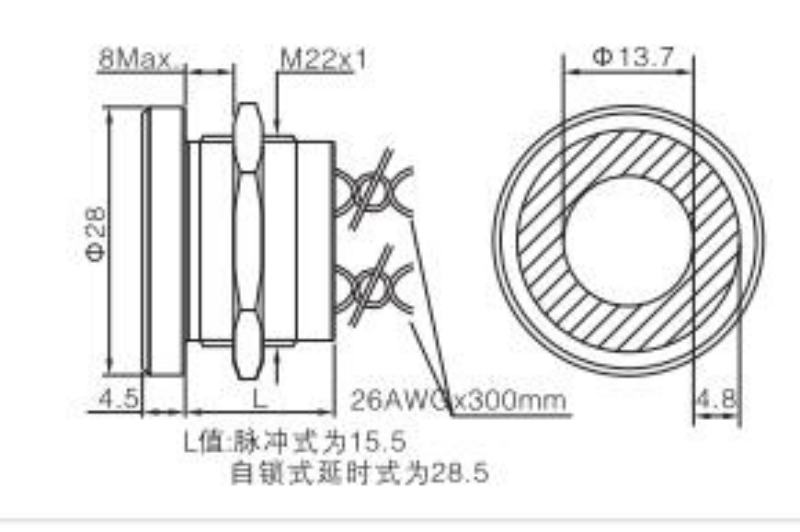

ELEWIND 22mm Black aluminum ring illuminated piezo switch push button switch (PS225P10YBK1B24L,Rohs,CE)
ELEWIND Black aluminum ring illuminated piezo touch switch (22mm,PS225P10YBK1B24L,Rohs,CE)
Part number: PS225P10YBK1B24L
Install diameter : 22mm hole diameter
Rated current : 200mA
Rated voltage : 24VAC/DC
Crust Material : Aluminium
Crust color: Black(Other color: Red,silver,Green,blue,gold)
LED COLOR:Blue(Other color : Green,Blue,Yellow,Orange,White)
LED Voltage:5V,12V,24V
IP rated : IP68
Life : 5 Million
Standard : Rohs, CE
Operation force: 2 to 6 (N)
Operation temperature: – 40 to +75 degree
Wire connection:
Multi-wire leads section 0.22mm2 length 300mm,twisted by pair.
-

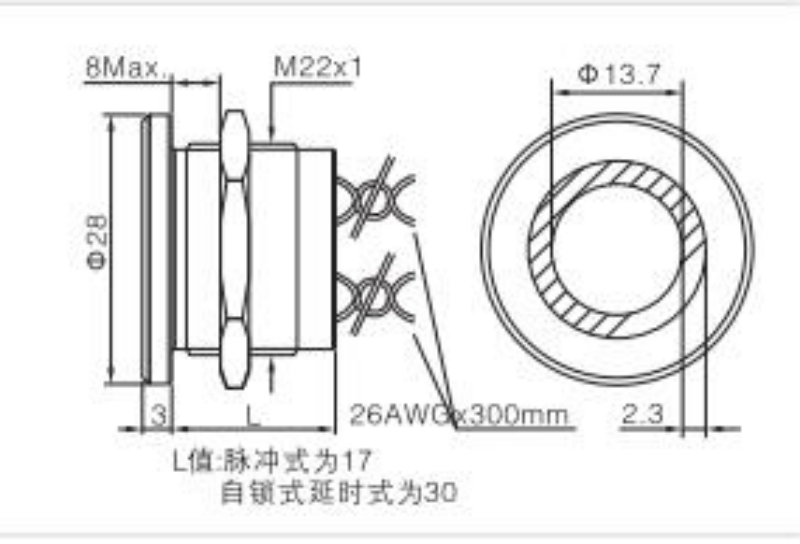

22MM Stainless steel Silver black aluminum Ring illuminated piezo push button switch(22mm,PS223P10YSS1B24T,Rohs,CE)
ELEWIND 22MM Ring illuminated piezo switch(22mm,PS223P10YSS1R24T,Rohs,CE)
Part number: PS223P10YSS1B24T
Install diameter : 22mm hole diameter
Rated current : 200mA
Rated voltage : 24VAC/DC
Crust Material : Stainless steel 316L
Crust color: Stainless steel or Aluminum
LED COLOR:Blue(Other color : Green,Red,Yellow,Orange,White)
LED Voltage:5V,12V,24V
IP rated : IP68
Life : 5 Million
Standard : Rohs, CE
Operation force: 2 to 6 (N)
Operation temperature: – 40 to +75 degree
Wire connection:
Multi-wire leads section 0.22mm2 length 300mm,twisted by pair.
-

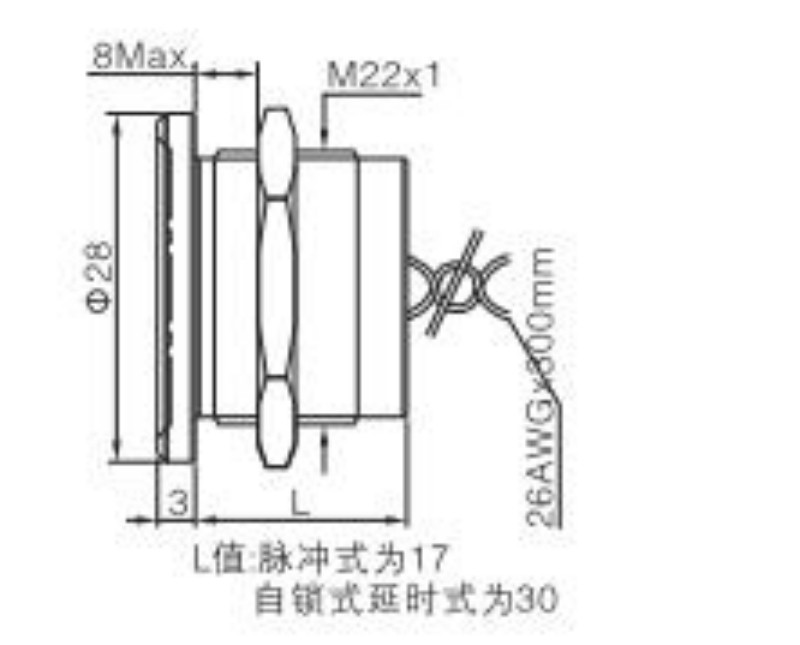

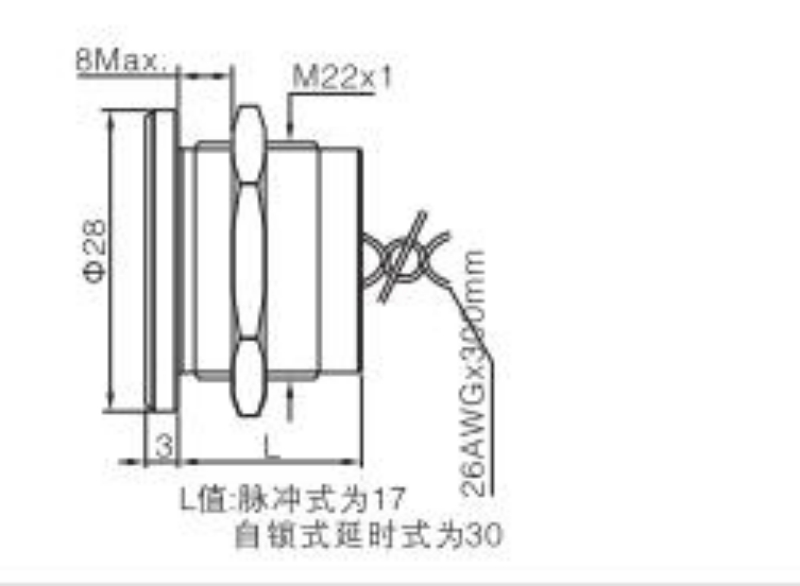

ELEWIND Stainless steel 316L piezo switch Silver color aluminum anodized piezo switch(22mm,PS223P10YSS1,Rohs,CE)
ELEWIND Stainless steel 316L piezo switch (22mm,PS223P10YSS1,Rohs,CE)
Part number: PS223P10YSS1
Install diameter : 22mm hole diameter
Rated current : 200mA
Rated voltage : 24VAC/DC
Crust Material : Stainless steel
Crust color: Stainless steel or Aluminium
Function: Momentary NO
IP rated : IP68
Life : 5 Million
Standard : Rohs, CE
Operation force: 2 to 6 (N)
Operation temperature: – 40 to +75 degree
Wire connection:
Multi-wire leads section 0.22mm2 length 300mm,twisted by pair.
-

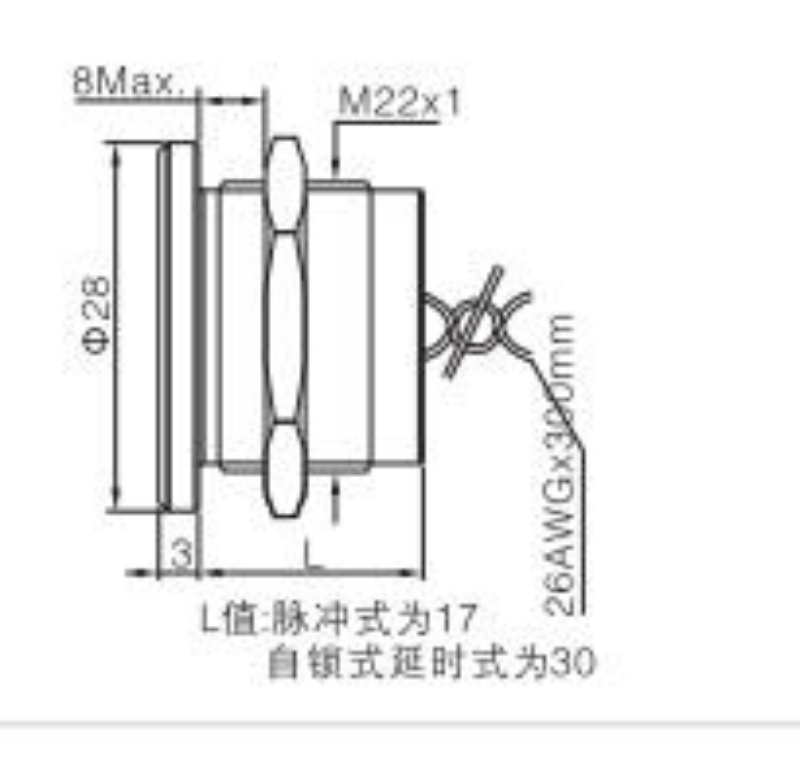

ELEWIND 22mm Silver color aluminum anodized Stainless steel piezo push switch (PS223Z10YNT1,Rohs,CE)
ELEWIND Silver aluminum anodized piezo touch switch (22mm,PS223Z10YNT1,Rohs,CE)
Part number: PS223Z10YNT1
Install diameter : 22mm hole diameter
Rated current : 200mA
Rated voltage : 24VAC/DC
Crust Material : Aluminium or Stainless steel
Crust color: Silver(Other color: Red,black,Green,blue,gold)
Function: Momentary NO
IP rated : IP68
Life : 5 Million
Standard : Rohs, CE
Operation force: 2 to 6 (N)
Operation temperature: – 40 to +75 degree
Wire connection:
Multi-wire leads section 0.22mm2 length 300mm,twisted by pair.
-

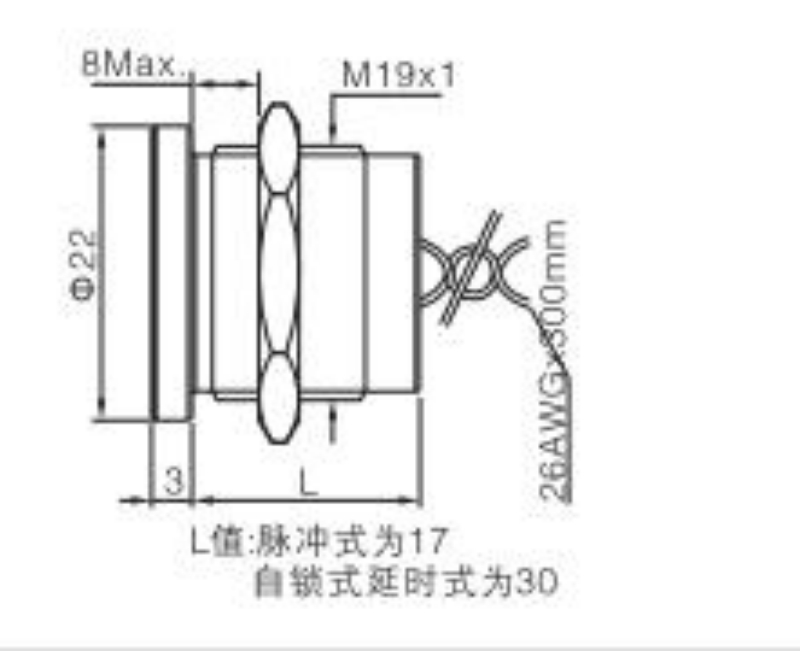

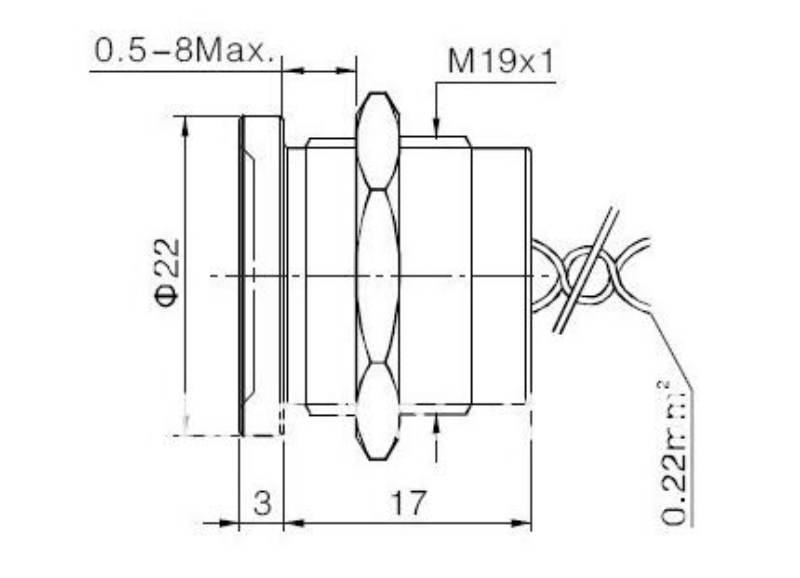

ELEWIND 19mm flat head stainless steel or Black aluminum alloy piezo push button switch (PS193P10YSS1 , PS193P10YBK1,Rohs,CE)
ELEWIND flat head stainless steel piezo push switch (19mm,PS193P10YSS1,Rohs,CE)
Part number: PS193P10YSS1Install diameter : 19mm hole diameter
Rated current : 200mA
Rated voltage : 24VAC/DC
Crust Material : Stainless steel
Crust color: Stainless steel
IP rated : IP68
Life : 5 Million
Standard : Rohs, CE
Operation force: 2 to 6 (N)
Operation temperature: – 40 to +75 degree
Wire connection:
Multi-wire leads section 0.22mm2 length 300mm,twisted by pair.
-

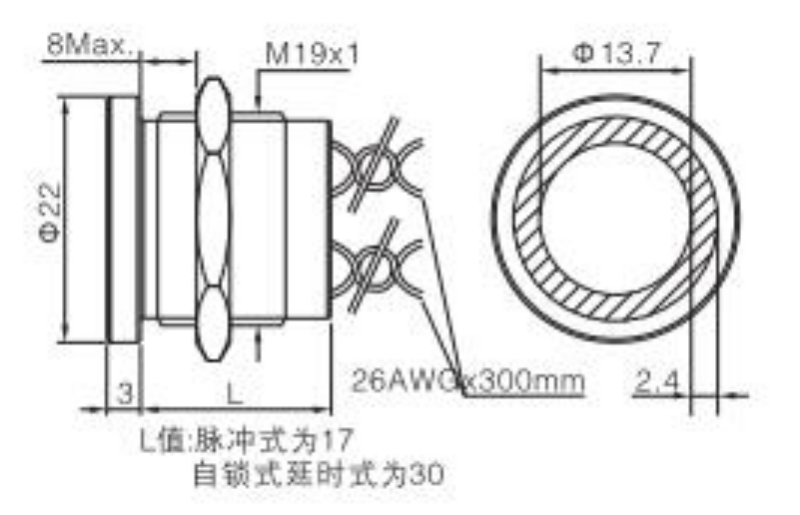

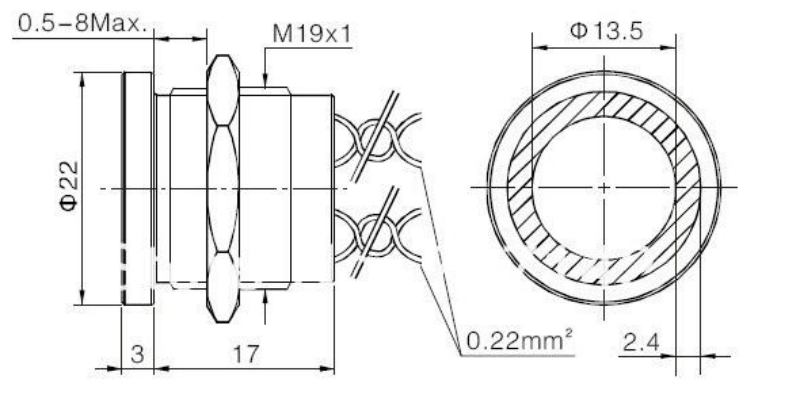

ELEWIND Gold aluminum anodized piezo switch push button switch (19mm,PS193P10YGD1B24L,Rohs,CE)
ELEWIND Gold aluminum anodized piezo touch switch (19mm,PS193P10YGD1B24L,Rohs,CE)
Part number: PS193P10YGD1B24L
Install diameter : 19mm hole diameter
Rated current : 200mA
Rated voltage : 24VAC/DC
Crust Material : Aluminium
Crust color: Gold
LED COLOR:Blue(Other color : Green,red,Yellow,Orange,White)
LED Voltage:5V,12V,24V
IP rated : IP68
Life : 5 Million
Standard : Rohs, CE
Operation force: 2 to 6 (N)
Operation temperature: – 40 to +75 degree
Wire connection:
Multi-wire leads section 0.22mm2 length 300mm,twisted by pair.
-
ELEWIND Silver color metal aluminum anodized piezo switch push button switch (19mm,PS193P10YNT1B24L,Rohs,CE)
ELEWIND Silver aluminum anodized piezo push switch (19mm,PS193P10YNT1B24L,Rohs,CE)
Part number: PS193P10YNT1B24L
Install diameter : 19mm hole diameter
Rated current : 200mA
Rated voltage : 24VAC/DC
Crust Material : Aluminium
Crust color: Silver(Other color: Blue,Gold,Green,black,Red)
LED COLOR:Blue(Other color : Green,Blue,Yellow,Orange,White)
LED Voltage:5V,12V,24V
IP rated : IP68
Life : 5 Million
Standard : Rohs, CE
Operation force: 2 to 6 (N)
Operation temperature: – 40 to +75 degree
Wire connection:
Multi-wire leads section 0.22mm2 length 300mm,twisted by pair.
-
ELEWIND 19mm flat head stainless steel or Black aluminum alloy piezo push button switch (PS193P10YSS1 , PS193P10YBK1,Rohs,CE)
ELEWIND Black aluminum anodized piezo touch switch (19mm,PS193P10YBK1,Rohs,CE)
Part number: PS193P10YBK1
Install diameter : 19mm hole diameter
Rated current : 200mA
Rated voltage : 24VAC/DC
Crust Material : Aluminium
Crust color: Black(Other color: Red,silver,Green,blue,gold)
IP rated : IP68
Life : 5 Million
Standard : Rohs, CE
Operation force: 2 to 6 (N)
Operation temperature: – 40 to +75 degree
Wire connection:
Multi-wire leads section 0.22mm2 length 300mm,twisted by pair.
-
ELEWIND 19MM metal Stainless steel or Silver color aluminum anodized piezo switch push button switch (PS193Z10YNT1,Rohs,CE)
ELEWIND flat head stainless steel piezo touch switch (19mm,PS193Z10YSS1,Rohs,CE)
Part number: PS193Z10YSS1
Install diameter : 19mm hole diameter
Rated current : 200mA
Rated voltage : 24VAC/DC
Crust Material : Stainless steel
Crust color: Stainless steel
IP rated : IP68
Life : 5 Million
Standard : Rohs, CE
Operation force: 2 to 6 (N)
Operation temperature: – 40 to +75 degree
Wire connection:
Multi-wire leads section 0.22mm2 length 300mm,twisted by pair.
