Push Button Switch
-
ELEWIND 12mm metal push button switch momentary 1NO with ring light(PM122F-10E-S)
Metal push button, individually developed by our company, has dozens of proprietary intellectual property rights. There are many types, such as indicator, push button, latching push button, illuminated push button, selector, illuminated selector, key lock switch, emergency stop switch and buzzer.
With the effort of all the stuff, metal push buttons develop to more series and more types, and they are gradually accepted by well-known enterprises home and abroad (especially some large comprehensive enterprises in Europe and America). Push buttons are widely used in large mechanical equipment, armaria, automo bile operation, bathroom corollary equipment, office equipment, hotel decoration, outdoor digital product and computer equipment. -

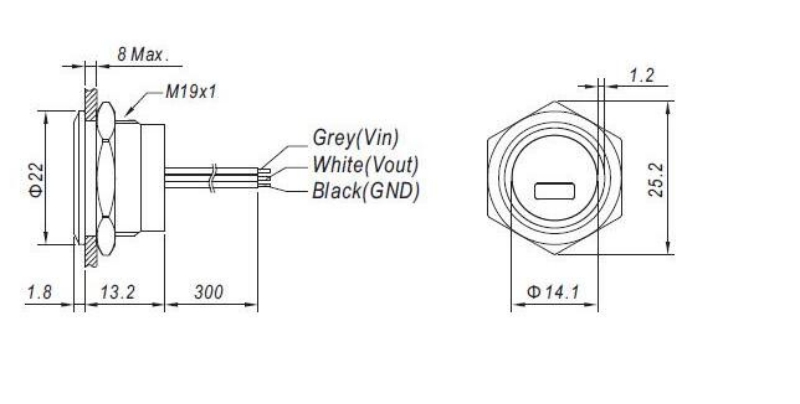

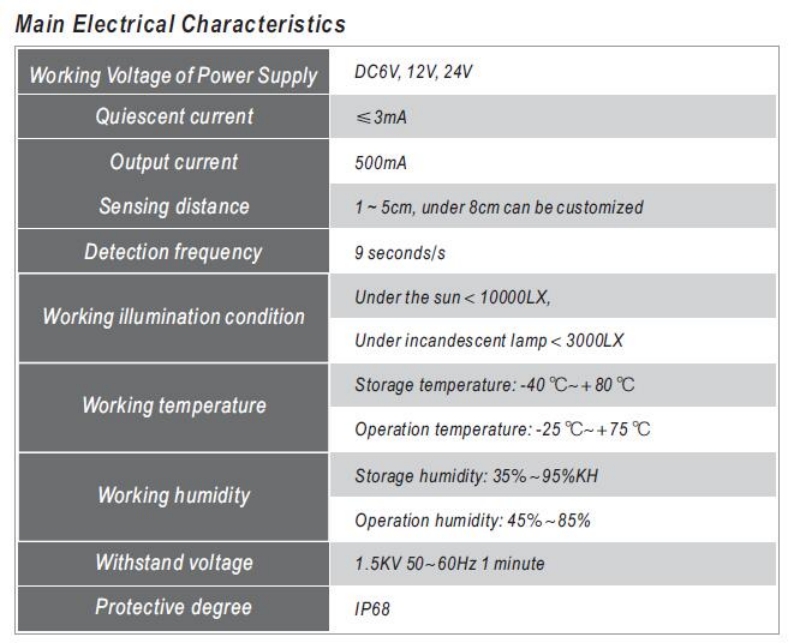

ELEWIND 19MM Contactless Sensor Switch Ring illuminated metal stainless steel with 30cm wire DC12V
1.Places with large dust;
2 Places with more corrosive gases;
3 Places with strong direct sunlight such as outdoors or sunlight;
4 The ambient temperature during use should be within the specified rated range;
5 Please confirm whether the installation is loose or skewed due to vibration impact etc
6 When installing the sensor beating with a hammer will damage the water-resistant structure please pay attention.
-

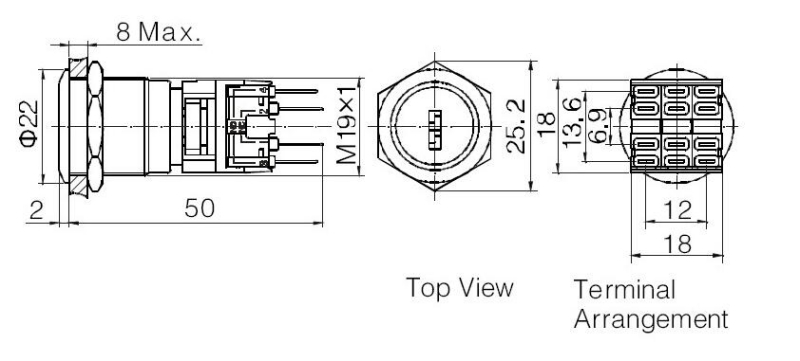

ELEWIND 19mm stainless steel Flat head 4 Pin terminal(1NO1NC) Key lock switch ( PM195F-11Y/21 )
Part number:PM195F-11Y/21 key cann’t remove in the ON position.
Install diameter:19mm
Switch rating: 3A/250VAC
Shape: Flat head
Function: Two position maintain key lock switch , the key cann’t remove in the ON position.
Terminal: 4 Pin terminal(1NO1NC)
Crust material: stainless steel
Temperature: – 40 to 75 Degree
-

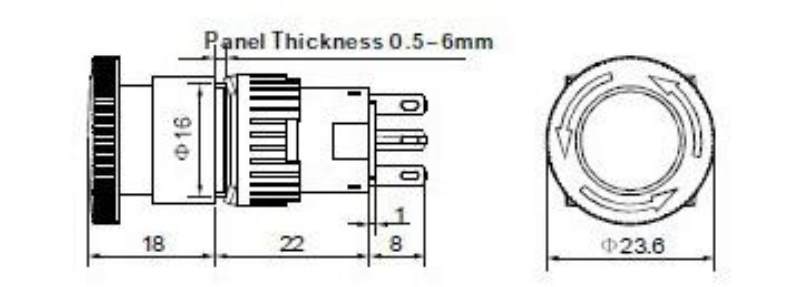

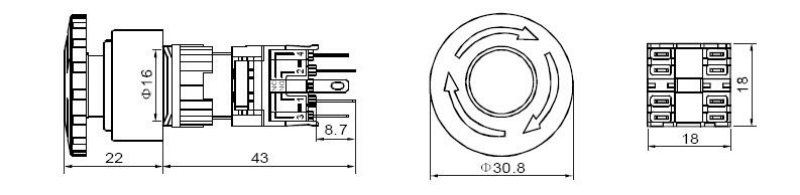

ELEWIND 16MM illuminated Emergency stop switch ( PB162Y-11TS/R/12V,CE,Rohs )
ELEWIND 16mm Illuminated Emergency stop switch
Part number:PB162Y-11TS/R/12V
Install diameter:16mm
Switch rating: 3A/250VAC
Shape: Round
Button color: RED
LED voltage:12V
Function: Push lock,turn reset (1NO1NC)
Terminal:6 PIN terminal
Crust material: Plastic
Temperature: - 25 to 55 Degree
-

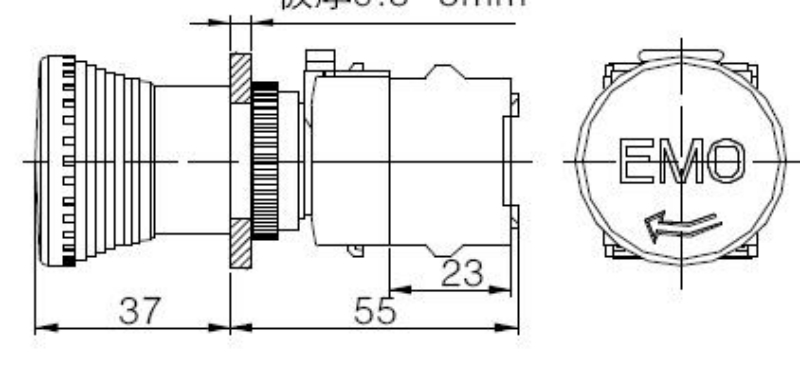

ELEWIND 22mm emergency stop switch with switch box (PB222-11TSA/R/P/T14/2260 with switch box)
ELEWIND 22MM emergency stop switch with switch box
Part number:PB222-11TSA/R/P/T14/2260 with switch box
Install diameter:22mm
Switch rating: 5A/250VAC
Shape:Round head
Button color:Red
Terminal:SCREW terminal
Contact configuration: 1NO1NC
Crust material: Plastic
IP rating: IP65
Temperature: - 25 to 55 Degree
-
ELEWIND 16mm Emergency stop switch (PB161Y-11TS/R,CE,ROHS)
ELEWIND 16mm Emergency stop switch
Part number:PB161Y-11TS/R with guard
Install diameter:16mm
Switch rating: 3A/250VAC
Shape: Round
Button color: RED
Function: Push lock,turn reset (1NO1NC)
Terminal:3 PIN terminal
Crust material: Plastic
Temperature: - 25 to 55 Degree
-

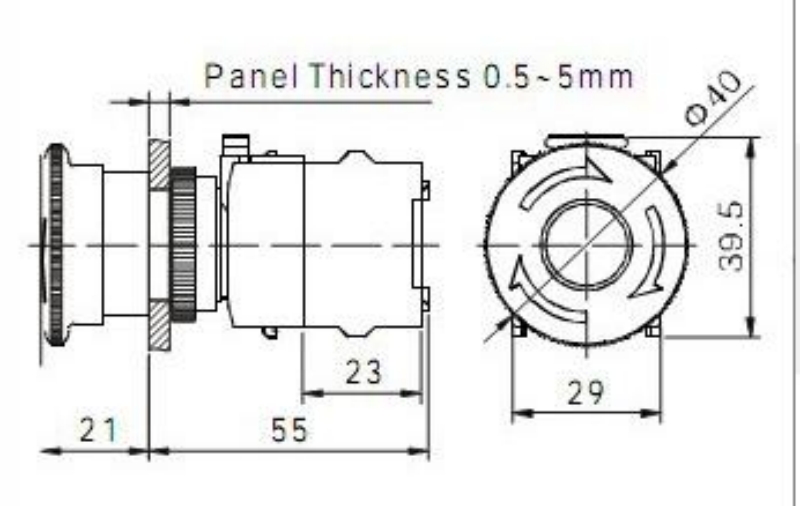

ELEWIND 22mm high quality Emergency stop switch with switch box (PB22-11TSB/IP65 with switch box)
ELEWIND high quality Emergency stop switch with switch box (PB22-11TSB with switch box)
Part number:PB22-11TSB/IP65 with switch box
Install diameter:22mm
Switch rating: 5A/250VAC
Shape:Round head
Button color:Red
Operation: Push lock, Turn reset
Terminal:SCREW terminal
Contact configuration: 1NO1NC
Crust material: Plastic
IP rating: IP65
Temperature: - 40 to 75 Degree
-

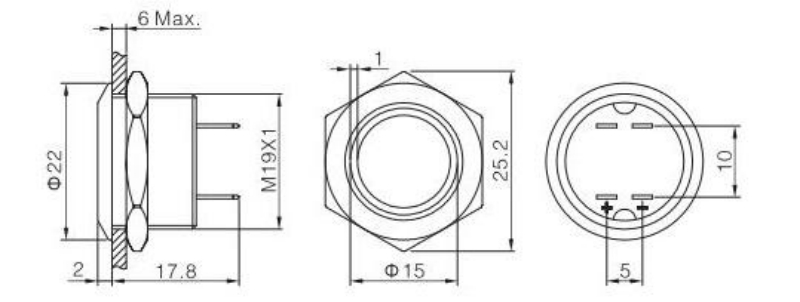

ELEWIND 19mm stainless steel Momentary short length body push button switch ( PM19W-10E/R/12V/S )
Part number:Short length body push button switch(PM19W-10E/R/12V/S )
Install diameter:19mm
Switch rating: 50mA/24VDC
Shape: Flat head
Function:Momentary (Push on) (1NO)
Terminal: 4 Pin terminal (2.8*0.5mm)
Operation travel: 0.5mm
Panel thickness: 1 – 7mm
Crust material: stainless steel
Base material: PA
Operate force: 3N-6N
LED color: Red – Green - Blue- White for you choose.
Voltage:12V (Other voltage need MOQ 50pcs)
IP rating: IP65
Mechanical and electrical life: 500,000 times
Operation Temperature: – 40 to 75 Degree
-

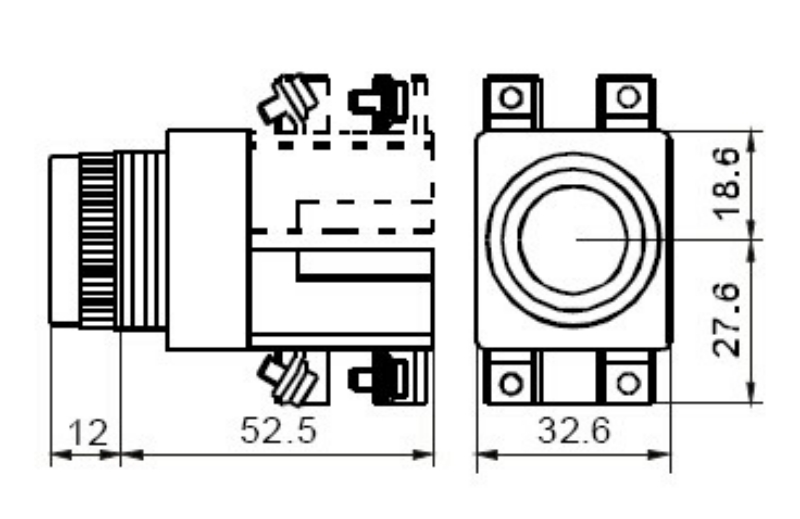

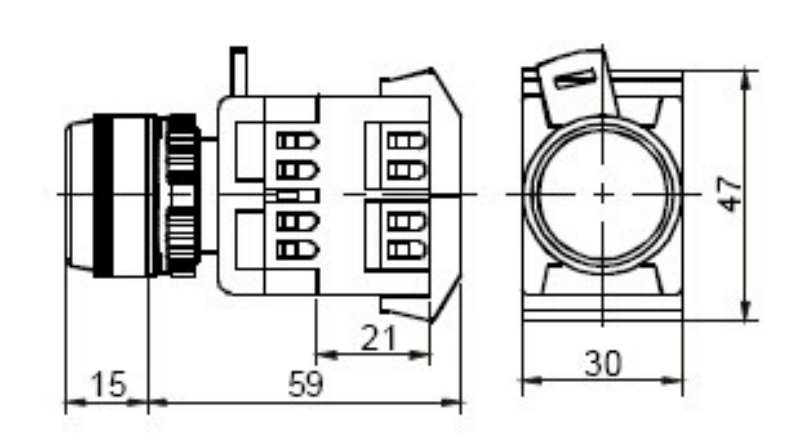

ELEWIND 22mm plastic Screw terminal 1NO1NC Push on momentary button switch RED Cap color ( PB226-11/R )
ELEWIND 22mm1NO1NC Push on momentary switch (PB226-11/R)
Part number : PB226-11/R
Install diameter: 22mm Shape:
PUSH BUTTON switch Cap color RED Function: push button switch Terminal: Screw terminal Switch Rating: 10A/250V Operation Temperature: -40 to 75 Degree If you need with light pls contact us.
-

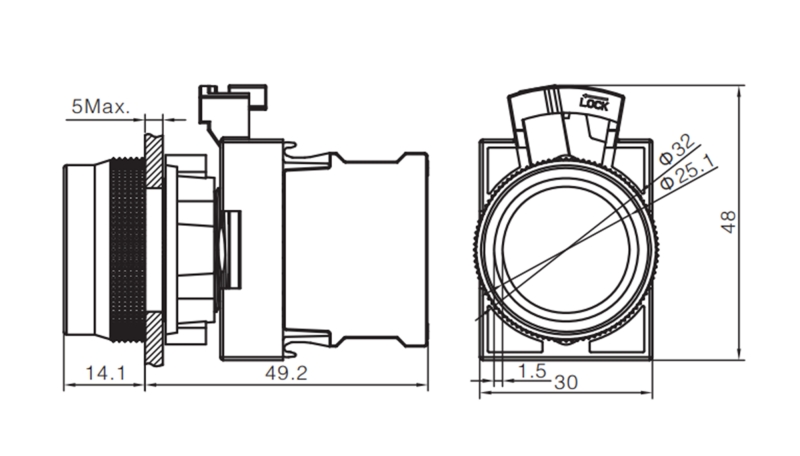

ELEWIND 30mm Screw terminal RED Cap color 1NO1NC Push on momentary button switch WITH LIGHT ( PB228-11D/R/12V )
ELEWIND 25mm1NO1NC Push on momentary switch WITH LIGHT (PB228-11D/R/12V)
Part number : PB228-11D/R/12V
Install diameter: 25mm Shape: PUSH BUTTON switch Cap color RED Function: push button switch Terminal: Screw terminal Switch Rating: 10A/250V Operation Temperature: -40 to 75 Degree If you need with light pls contact us.
-
ELEWIND 25mm plastic Screw terminal 1NO1NC Push on momentary button switch RED Cap color ( PB227-11/R )
ELEWIND 25mm1NO1NC Push on momentary switch (PB227-11/R)
Part number : PB227-11/R
Install diameter: 25mm Shape: PUSH BUTTON switch Cap color RED Function: push button switch Terminal: Screw terminal Switch Rating: 10A/250V Operation Temperature: -40 to 75 Degree -
ELEWIND 22mm Metal push button 1NO1NC momentary or Latching type ( PB226-11P )
Product Feature:
1.Metal aluminium button2. Function: 1NO1NC Momentary type or Latching type(you can choose the switch contact block in 1NO,1NC,2NO)
