ELEWIND 25mm illuminated Power symbol Momentary push button switch with connector(PM251F-11ET/B/12V/S)

Short Description:

1

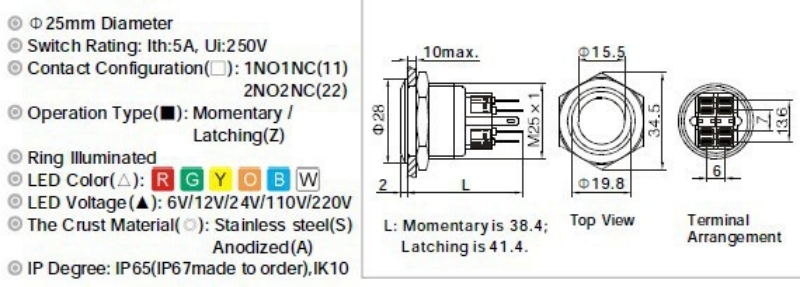

Part number:PM251F-11ET/12V/S With connector

Install diameter:25mm

Switch rating: 5A/250VAC

Shape: Flat head

Color: Blue,RED,Green,Yellow,White,Orange

Voltage: from 2.8V to 250V

Function: Momentary (2NO2NC)

Terminal: Pin terminal

Crust material: Stainless steel

IP rating: IP65

Temperature: – 40 to 75 Degree
