piezo switch
-
ELEWIND Aluminum alloy momentary 1NO piezo switch push button switch(16mm,PS161P10YRD1,Rohs,CE)
16mm IP68 Sealed piezo switch
Part number: PS161P10Y
(Pls confirm the crust color when you place the order)
Install diameter : 16mm hole diameter
Rated current : 200mA
Rated voltage : 24VAC/DC
Crust Material : Aluminum anodized
Crust color: Black,Red,Green,Blue,Silver,Gold
Function: Momentary ON
IP rated : IP68
Life : 5 Million
Standard : Rohs, CE
Operation force: 2 to 6 (N)
Operation temperature: – 40 to +75 degree
Wire connection:
Multi-wire leads section 0.22mm2 length 300mm,twisted by pair.
-
ELEWIND 16mm Stainless Steel or black or silver aluminum anodized Ring illuminated Piezo switch (PS165P10YSS1B24,Rohs,CE)
16mm stainless steel ring illuminated piezo touch switch
Part number: PS165P10YSS1B24
Install diameter : 16mm hole diameter
Rated current : 200mA
Rated voltage : 24VAC/DC
Crust Material :Stainless steel 316L
Crust color: Stainless steel
LED COLOR:Blue(Other color : Green,Blue,Yellow,Orange,White)
LED Voltage:5V,12V,24V
IP rated : IP68
Life : 5 Million
Standard : Rohs, CE
Operation force: 2 to 6 (N)
Operation temperature: – 40 to +75 degree
Wire connection:
Multi-wire leads section 0.22mm2 length 300mm,twisted by pair.
-
ELEWIND 16mm metal Stainless steel or Black aluminum alloy piezo switch (16mm,PS165Z10YSS1,Rohs,CE)
16mm IP68 Sealed piezo touch switch
Part number: PS165Z10YSS1
Install diameter : 16mm hole diameter
Rated current : 200mA
Rated voltage : 24VAC/DC
Crust Material : Stainless steel 316L
Crust color: Stainless steel color
IP rated : IP68
Life : 5 Million
Standard : Rohs, CE
Operation force: 2 to 6 (N)
Operation temperature: – 40 to +75 degree
Wire connection:
Multi-wire leads section 0.22mm2 length 300mm,twisted by pair.
-
ELEWIND 16mm metal Stainless steel or Black aluminum alloy piezo switch (16mm,PS165P10YSS1,Rohs,CE)
16mm IP68 Sealed piezo touch switch
Part number: PS16PZ10YSS1
Install diameter : 16mm hole diameter
Rated current : 200mA
Rated voltage : 24VAC/DC
Crust Material : Stainless steel 316L
Crust color: Stainless steel color
IP rated : IP68
Life : 5 Million
Standard : Rohs, CE
Operation force: 2 to 6 (N)
Operation temperature: – 40 to +75 degree
Wire connection:
Multi-wire leads section 0.22mm2 length 300mm,twisted by pair.
-

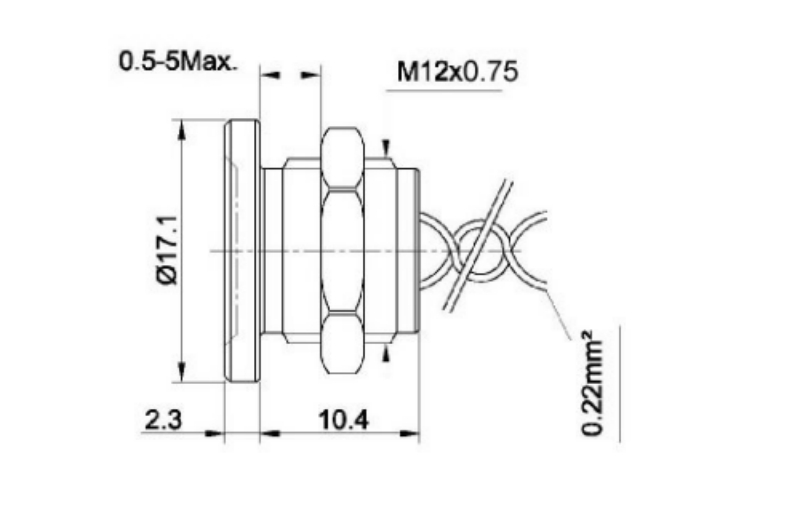

ELEWIND 12mm 316L Stainless steel piezo switch 10NO push button switch (PS122Z10YSS1,Rohs,CE)
12mm 316L Stainless steel piezo switch
Part number: PS122Z10YSS1
Install diameter : 12mm hole diameter
Rated current : 200mA
Rated voltage : 24VAC/DC
Crust Material : Stainless steel 316L
Crust color: Stainless steel
Function: Momentary ON
IP rated : IP68
Life : 5 Million
Standard : Rohs, CE
Operation force: 2 to 6 (N)
Operation temperature: – 40 to +75 degree
Wire connection:
Multi-wire leads section 0.22mm2 length 300mm,twisted by pair.
