Push Button Switch

  • ELEWIND 22mm Plastic Momentary Latching(1NO1NC) illuminated push button switch (PB223PF-11D/R/12V/IP40 ，PB223WF-11D/R/12V/IP40 )

    ELEWIND 22mm Plastic Momentary Latching(1NO1NC) illuminated push button switch (PB223PF-11D/R/12V/IP40 ，PB223WF-11D/R/12V/IP40 )



    1





    22mm illuminated momentary push button switch

    Part number:PB223PF-11D/R/12V/IP40

    Install diameter:22mm

    Switch rating: 5A/230VAC

    Shape: Black Square head

    LED and Button color: RED，Blue,Green,Orange,White,Yellow

    Voltage: from 1.8V to 230V

    Function: Momentary (1NO1NC)

    Terminal:5 PIN terminal

    Crust material: Plastic

    IP rating: IP40

    Temperature: - 25 to 55 Degree



    inquirydetail
  • ELEWIND 16mm Plastic 6 PIN terminal Round Shape Selector switch 2 position maintain ( PB162Y-11X/21 )

    ELEWIND 16mm Plastic 6 PIN terminal Round Shape Selector switch 2 position maintain ( PB162Y-11X/21 )

    1 2



    ELEWIND 16mm selector switch (PB162Y-11X/21)

    Part number:PB162Y-11X/21

    Install diameter:16mm

    Switch rating: 3A/250VAC

    Shape: Round(Square and rectangular can be choose)

    Function: 2 Position maintain

    Terminal:6 PIN terminal

    Crust material: Plastic

    Temperature: - 25 to 55 Degree



    inquirydetail
  • ELEWIND 16MM plastic Round stop emergency push button switch PB162Y-11TSB

    ELEWIND 16MM plastic Round stop emergency push button switch PB162Y-11TSB

    1



    Part number:PB162Y-11TSB

    Install diameter: 16MM

    Function: stop emergency push button switch

    Contact  Configuration： 1NO1NC or 2NO2NC

    voltage: 1.8V-220V

    Terminal: Pin terminal

    Crust material: plastic

    IP rating: IP40

    Temperature: – 25 to 55 Degree





    inquirydetail
  • ELEWIND 16mm Plastic PIN terminal Round (1NO1NC) emergency stop button ( PB161Y-11TS/R )

    ELEWIND 16mm Plastic PIN terminal Round (1NO1NC) emergency stop button ( PB161Y-11TS/R )

    1

    ELEWIND 16mm emergency stop button(PB161Y-11TS/R)

    Part number:PB161Y-11TS/R

    Install diameter:16mm

    Switch rating: 3A/250VAC

    Shape: Round

    Button color: RED

    Function: Push lock,turn reset (1NO1NC)

    Terminal:3 PIN terminal

    Crust material: Plastic

    Temperature: - 25 to 55 Degree





    inquirydetail

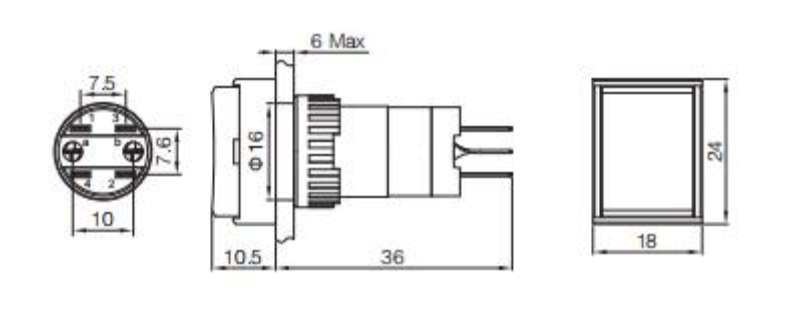

  • ELEWIND 16mm Plastic 5 PIN terminal square momentary or Latching (1NO1NC) illuminated push button switch ( PB161F-11Z/G/12V )

    ELEWIND 16mm Plastic 5 PIN terminal square momentary or Latching (1NO1NC) illuminated push button switch ( PB161F-11Z/G/12V )

    1 2 3





    16mm square illuminated latching push button switch

    Part number:PB161F-11Z/G/12V

    Install diameter:16mm

    Switch rating: 3A/250VAC

    Shape: Square

    LED and Button color: Green, Blue,Red,Orange,White,Yellow

    Voltage: from 2.8V to 230V

    Function: Latching (1NO1NC)

    Terminal:5 PIN terminal

    Crust material: Plastic

    Temperature: - 25 to 55 Degree

    inquirydetail
  • ELEWIND 12mm Plastic momentary or Latching 5 PIN terminal illuminated push button switch (PB121Y-11Z/R/12V , PB121Y-11/R/12V)

    ELEWIND 12mm Plastic momentary or Latching 5 PIN terminal illuminated push button switch (PB121Y-11Z/R/12V , PB121Y-11/R/12V)

    1



    ELEWIND 12mm illuminated momentary push button switch (PB121Y-11Z/R/12V)

    Part number:PB121Y-11Z/R/12V

    Install diameter:12mm

    Switch rating: 2A/230V

    Shape: Round

    LED and Button color: RED,Blue,Green,Orange,White,Yellow

    Voltage:  from 1.8V to 230V

    Function: Latching(1NO1NC)

    Terminal:5 PIN terminal

    Crust material: Plastic

    Temperature: - 25 to 55 Degree

    inquirydetail
  • ELEWIND 8mm Plastic 5 PIN terminal Latching momentary Round lock push button switch (PB81F-11D/G/12V , PB81F-11ZD/G/12V)

    ELEWIND 8mm Plastic 5 PIN terminal Latching momentary Round lock push button switch (PB81F-11D/G/12V , PB81F-11ZD/G/12V)



    1 2 3







    8mm lock push button

    8mm illuminated Latching push button switch

    Part number:PB081F-11ZD/G/12V

    Install diameter:8mm

    Switch rating: 2A/48V

    Shape: Round

    LED and Button color: Green,Blue,RED,Orange,White,Yellow

    Voltage: from 1.8V to 230V

    Function: Latching (1NO1NC)

    Terminal:5 PIN terminal

    Crust material: Plastic

    Temperature: - 25 to 55 Degree

    inquirydetail
  • ELEWIND 12mm latching on-off type metal Stainless steel with ring Illuminated light push button switch (PM123H-10ZE/J/S)

    ELEWIND 12mm latching on-off type metal Stainless steel with ring Illuminated light push button switch (PM123H-10ZE/J/S)

    406



    1. key word: 12mm metal Stainless steel push button switch

    2. MOQ: 1 piece

    3. Head material: Stainless steel

    4. Head type: High head

    5.Application areas: machinery, industrial equipment, food, aviation, new energy, medical, automation, cruise ships and other industries

    6. Advantage: 1NO Stainless steel with ring Illuminated light push button switch

    7. Shipping methods: DHL/UPS/Fedex and other international express





    Product introduction:

    With the effort of all the stuff, metal push buttons develop to

    more series and more types, and they are gradually accepted by

    well-known enterprises home and abroad (especially some large

    comprehensive enterprises in Europe and America). Push buttons

    are widely used in large mechanical equipment, armaria, automo

    bile operation, bathroom corollary equipment, office equipment,

    hotel decoration, outdoor digital product and computer equipment.



    While enjoying the honor and achievements,we are not arrogant and impatient, continue to improve, in order to lay a strong foundation for a wonderful tomorrow, we sincerely treat customer needs, with excellent products and quality services to win the market, continue to strive to promote the ELEWIND brand to the world. Condensing new strength, opening up a new blueprint, carrying responsibility and responsibility, carrying on the back of dreams and integrity, sailing to a more magnificent future

    Our products have been sold to 30 countries around the world, and we are full of praise for their quality. We will wholeheartedly provide each customer with high-quality services and products, and look forward to cooperating with you



    Product parameters:

    PM123H-10ZE/J/S

    Φ12mm Diameter

    Switch Rating: 1A/36VDC

    Contact Configuration: 1NO

    Operation Type:  latching

    Terminal Type(◆): Pin Terminal

    The shell Material: Stainless steel

    The ring light color:  red  blue  green yellow white orange

    IP Degree: IP40

    inquirydetail
  • ELEWIND 12mm small/mini momentary or latching type metal Stainless steel without light push button switch (PM12H-11/S)

    ELEWIND 12mm small/mini momentary or latching type metal Stainless steel without light push button switch (PM12H-11/S)

    406



    1. key word: 12mm metal Stainless steel push button switch

    2. MOQ: 1 piece

    3. Head material: Stainless steel

    4. Head type: High head

    5.Application areas: machinery, industrial equipment, food, aviation, new energy, medical, automation, cruise ships and other industries

    6. Advantage: 1NO1NC Stainless steel push button switch

    7. Shipping methods: DHL/UPS/Fedex and other international express





    Product introduction:

    With the effort of all the stuff, metal push buttons develop to

    more series and more types, and they are gradually accepted by

    well-known enterprises home and abroad (especially some large

    comprehensive enterprises in Europe and America). Push buttons

    are widely used in large mechanical equipment, armaria, automo

    bile operation, bathroom corollary equipment, office equipment,

    hotel decoration, outdoor digital product and computer equipment.



    While enjoying the honor and achievements,we are not arrogant and impatient, continue to improve, in order to lay a strong foundation for a wonderful tomorrow, we sincerely treat customer needs, with excellent products and quality services to win the market, continue to strive to promote the ELEWIND brand to the world. Condensing new strength, opening up a new blueprint, carrying responsibility and responsibility, carrying on the back of dreams and integrity, sailing to a more magnificent future

    Our products have been sold to 30 countries around the world, and we are full of praise for their quality. We will wholeheartedly provide each customer with high-quality services and products, and look forward to cooperating with you



    Product parameters:

    PM12H-11/S

    Φ12mm Diameter

    Switch Rating: 1A/36VDC

    Contact Configuration: 1NO1NC

    Operation Type: Momentary or latching

    Terminal Type(◆): Pin Terminal

    The shell Material: Stainless steel

    IP Degree: IP40

    inquirydetail
  • ELEWIND 12mm small/mini momentary or latching type metal Stainless steel with ring Illuminated light push button switch (PM122H-11E/S)

    ELEWIND 12mm small/mini momentary or latching type metal Stainless steel with ring Illuminated light push button switch (PM122H-11E/S)

    406



    1. key word: 12mm metal Stainless steel push button switch

    2. MOQ: 1 piece

    3. Head material: Stainless steel

    4. Head type: High head

    5.Application areas: machinery, industrial equipment, food, aviation, new energy, medical, automation, cruise ships and other industries

    6. Advantage: 1NO1NC Stainless steel with ring Illuminated light push button switch

    7. Shipping methods: DHL/UPS/Fedex and other international express





    Product introduction:

    With the effort of all the stuff, metal push buttons develop to

    more series and more types, and they are gradually accepted by

    well-known enterprises home and abroad (especially some large

    comprehensive enterprises in Europe and America). Push buttons

    are widely used in large mechanical equipment, armaria, automo

    bile operation, bathroom corollary equipment, office equipment,

    hotel decoration, outdoor digital product and computer equipment.



    While enjoying the honor and achievements,we are not arrogant and impatient, continue to improve, in order to lay a strong foundation for a wonderful tomorrow, we sincerely treat customer needs, with excellent products and quality services to win the market, continue to strive to promote the ELEWIND brand to the world. Condensing new strength, opening up a new blueprint, carrying responsibility and responsibility, carrying on the back of dreams and integrity, sailing to a more magnificent future

    Our products have been sold to 30 countries around the world, and we are full of praise for their quality. We will wholeheartedly provide each customer with high-quality services and products, and look forward to cooperating with you



    Product parameters:

    PM122H-11E/S

    Φ12mm Diameter

    Switch Rating: 1A/36VDC

    Contact Configuration: 1NO1NC

    Operation Type: Momentary or latching

    Terminal Type(◆): Pin Terminal

    The shell Material: Stainless steel

    The ring light color:  red  blue  green yellow white orange

    IP Degree: IP40

    inquirydetail
  • ELEWIND 12mm momentary metal Stainless steel 10NO bell push button switch, PM121B-10/S

    ELEWIND 12mm momentary metal Stainless steel 10NO bell push button switch, PM121B-10/S

    1



    Product introduction:

    Metal push button, individually developed by our company,

    has dozens of proprietary intellectual property rights. There are

    many types, such as indicator, push button, latching push button,

    illuminated push button, selector, illuminated selector, key lock

    switch, emergency stop switch and buzzer.

    With the effort of all the stuff, metal push buttons develop to

    more series and more types, and they are gradually accepted by

    well-known enterprises home and abroad (especially some large

    comprehensive enterprises in Europe and America). Push buttons

    are widely used in large mechanical equipment, armaria, automo

    bile operation, bathroom corollary equipment, office equipment,

    hotel decoration, outdoor digital product and computer equipment.

    IP degree:

    Comparing with plastic products, metal products not only

    make improvement in IK degree, but also make progress in IP

    degree. Most products have reached Ip65, and some have

    achieved IP67(Soaking for short time) and even more high level.

    And many clients call the products “water-proof push button”.



    The Notice for Pin Welding:

    Any incorrect welding operations all possibly cause damage

    to plastic deformation, bad-contact switch ect. When soldering

    the pin-terminals of switches and signal lamps, we should pay

    attention to the following points. Because it’s easy to have the

    switch damaged if improper-operation.

    1.Using suitable electric soldering iron and quickening welding

    speed. We suggest you use 30W electric soldering iron and finish

    within 2 seconds when it reaches 320℃.

    2.Using right amount of scaling powder and putting the pinterminals

    downwards when soldering.

    1. It’s better to use connectors than direct welding



    Customized Symbol:

    It has been the trend to laser engrave character and sign or

    customize lighting character and sign on the surface of metal push

    button. Customized metal surface makes the product personalized,

    and it has been a new trend.







    Note:

    Pls provide us the detailed part-number when you order.

    Colorized crust of aluminum material is available for all above

    products.

    If you need the products made to order, the MOQ is 500 pieces.

    The IP degree is used for the surface of the panel.

    Extra customize fee is needed for the order less than 500 pieces.



    Production change:

    All the specificat ion and illustration are subject to change

    without prior notice.





    Product parameters:

    PM121B-10◆/◎

    Φ12mm Diameter

    Switch Rating: 2A/36VDC

    Contact Configuration: 1NO

    Operation Type: Momentary

    Terminal Type(◆): Screw Terminal / Pin Terminal(J)

    Stainless steel(S)/Nickel Plated Brass(N)

    IP Degree: IP65  IK08

    inquirydetail
  • ELEWIND 10mm small/mini momentary or latching type metal Stainless steel without light push button switch (PM10H-11/S)

    ELEWIND 10mm small/mini momentary or latching type metal Stainless steel without light push button switch (PM10H-11/S)

    406



    1. key word: 10mm metal Stainless steel push button switch

    2. MOQ: 1 piece

    3. Head material: Stainless steel

    4. Head type: High head

    5.Application areas: machinery, industrial equipment, food, aviation, new energy, medical, automation, cruise ships and other industries

    6. Advantage: 1NO1NC Stainless steel push button switch

    7. Shipping methods: DHL/UPS/Fedex and other international express





    Product introduction:

    With the effort of all the stuff, metal push buttons develop to

    more series and more types, and they are gradually accepted by

    well-known enterprises home and abroad (especially some large

    comprehensive enterprises in Europe and America). Push buttons

    are widely used in large mechanical equipment, armaria, automo

    bile operation, bathroom corollary equipment, office equipment,

    hotel decoration, outdoor digital product and computer equipment.



    While enjoying the honor and achievements,we are not arrogant and impatient, continue to improve, in order to lay a strong foundation for a wonderful tomorrow, we sincerely treat customer needs, with excellent products and quality services to win the market, continue to strive to promote the ELEWIND brand to the world. Condensing new strength, opening up a new blueprint, carrying responsibility and responsibility, carrying on the back of dreams and integrity, sailing to a more magnificent future

    Our products have been sold to 30 countries around the world, and we are full of praise for their quality. We will wholeheartedly provide each customer with high-quality services and products, and look forward to cooperating with you



    Product parameters:

    PM10H-11/S

    Φ10mm Diameter

    Switch Rating: 1A/36VDC

    Contact Configuration: 1NO1NC

    Operation Type: Momentary or latching

    Terminal Type(◆): Pin Terminal

    The shell Material: Stainless steel

    IP Degree: IP40

    inquirydetail
<< < Previous 171819202122 Next > >> Page 21 / 22
