Micro-Travel Switch
-
ELEWIND 19mm Stainless Steel 3 Pin terminal Flat head Micro Travel Push Button Switch ( PM19-11W/S )
ELEWIND 19mm stainless steel micro travel push button switch (PM19-11W/S)
Part number:PM19-11W/S
Install diameter:19mm
Switch rating: 1A/125VAC, 0.5A/250VAC
Shape: Flat head
Function: Momentary Micro travel (1NO1NC)
Terminal: 3 Pin terminal
Operation travel: about 0.5mm
Crust material:Stainless steel
IP rating: IP67
Temperature: – 40 to 75 Degree
-
ELEWIND 22mm Stainless Steel 3 Pin terminal Flat head Micro Travel Push Button Switch ( PM22-11W/S )
ELEWIND 22mm stainless steel micro travel push button switch (PM22-11W/S)
Part number:PM22-11W/S
Install diameter:22mm
Switch rating: 1A/125VAC, 0.5A/250VAC
Shape: Flat head
Function: Momentary Micro travel (1NO1NC)
Terminal: 3 Pin terminal
Operation travel: about 0.5mm
Crust material:Stainless steel
IP rating: IP67
Temperature: – 40 to 75 Degree
-
ELEWIND 22mm Stainless steel 3 Pin terminal illuminated micro travel push button switch (PM22-11WE/RG/12V/S)
ELEWIND 22mm illuminated micro travel push button switch (PM22-11WE/RG/12V/S)
Part number:PM22-11WE/RG/12V/S
Install diameter:22mm
Switch rating: 1A/125VAC, 0.5A/250VAC
Shape: Flat head
Function: Momentary Micro travel (1NO1NC)
Terminal: 3 Pin terminal
LED color: Red-green
LED voltage: 12V
Operation travel: about 0.5mm
Crust material:Stainless steel
IP rating: IP67
Temperature: – 40 to 75 Degree
-
ELEWIND 19mm Super short length body Wiring leads push switch(PM19W-10E/Y/R/12V/S )
Part number:Super short length body Wiring leads push switch(PM19W-10E/Y/R/12V/S )
Install diameter:19mm
Switch rating: 50mA/24VDC
Shape: Flat head
Function:Momentary (Push on) (1NO)
Terminal: 4 wiring leads terminal (30mm length)
Operation travel: 0.5mm
Panel thickness: 1 – 7mm
Crust material: stainless steel
Base material: PA
Operate force: 3N-6N
LED color: Red – Green - Blue- White for you choose.
Voltage:12V (Other voltage need MOQ 50pcs)
IP rating: IP65
Mechanical and electrical life: 500,000 times
Operation Temperature: – 40 to 75 Degree
-
ELEWIND 22MM Short Body Under 20mm Maintained Push Button Switch With Light(16mm.19mm Can be choose)
Mounting Hole:
Φ22MM(16mm.19mm Can be choose) Switch Rating:
1A/24VDC Contact Configuration: 1NO Operation Type:
Self-locking (Momentary pls contact us) Operation Travel: 0.5mm Terminal Type: wire leading 300mm Switching:
A(Single-break contact) Panel Thickness: 1~6mm Torque: About 0.6Nm Mechanical Life: 500,000 cycles Electrical Life: 500,000 cycles Button: Stainless steel Body: Stainless steel Base: PBT Operating Force: About 3.8N(16mm),7.8N(19mm),5N(22mm)
IP Degree: IP65,IK05 -
(New)16mm Super short length body Latching push button switch(Length under 20mm)
Mounting Hole: Φ16mm (19mm,22mm can be choose) Switch Rating: 1A/24VDC Contact Configuration: 1NO Operation Type: Maintained (Need Momentary pls contact us) Operation Travel: 0.5mm Terminal Type: wire leading 300mm Switching: A(Single-break contact) Panel Thickness: 1~6mm Torque: About 0.6Nm Mechanical Life: 500,000 cycles Electrical Life: 500,000 cycles Button: Stainless steel Body: Stainless steel Base: PBT Operating Force: About 3.8N(16mm),7.8N(19mm),5N(22mm) IP Degree: IP65,IK05 -

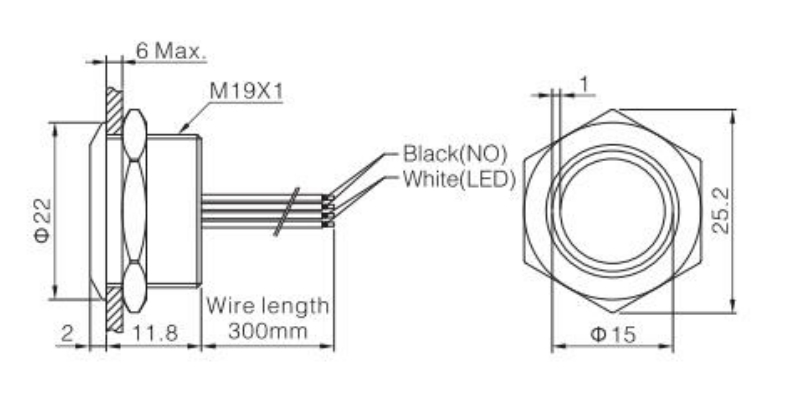

ELEWIND 19mm Super Short Length Body Wiring Leads Push Button(Body length under 20mm)
Mounting Hole:
Φ19mm(Φ16mm,Φ22mm can be choose) Switch Rating: 1A/24VDC Contact Configuration: 1NO Operation Type: Self-locking (Momentary pls contact us) Operation Travel: 0.5mm Terminal Type: wire leading 300mm Switching: A(Single-break contact) Panel Thickness: 1~6mm Torque: About 0.6Nm Mechanical Life: 500,000 cycles Electrical Life: 500,000 cycles Button: Stainless steel Body: Stainless steel Base: PBT Operating Force: About 3.8N(16mm),7.8N(19mm),5N(22mm) IP Degree: IP65,IK05 (IP67 can be choose) -

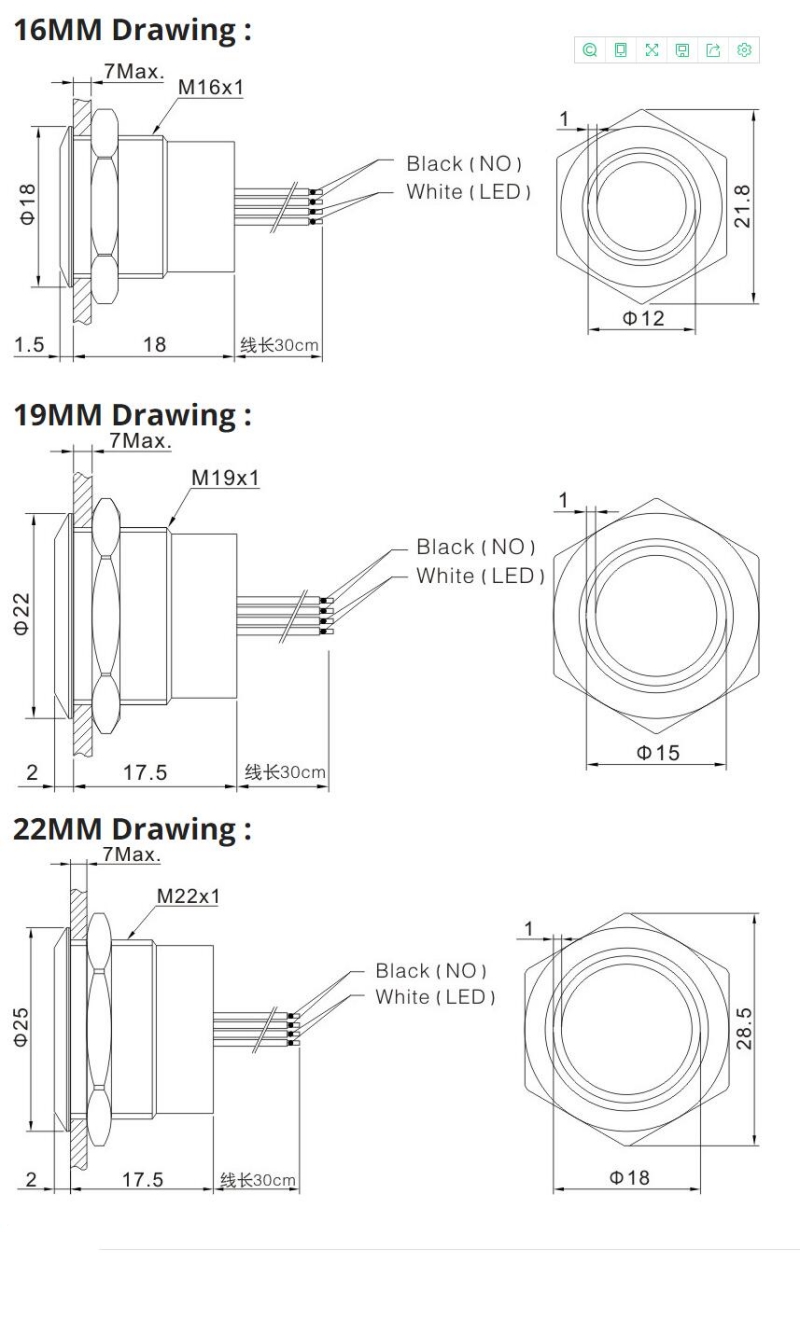

16MM 19MM 22MM metal Stainless steel 1NO Micro-Travel Switch with ring LED light 30CM wire push button switch MTCF-10E/Y/S
Part number: MTCF-10■E/Y/S Micro-Travel Switch
Install diameter: 16MM 19MM 22MM
Shape: Flat head
Function: Momentary (1NO) or latching (1NO)
LED light color: red blue green white yellow
Terminal: 30CM wire
Crust material: Stainless steel
IP rating: IP65
Temperature: – 25 to 55 Degree
High Current： 1A
Operating distance: 0.5mm
-
ELEWIND 16MM 19MM 22MM metal Stainless steel short body Micro-Travel Switch with 30CM wire push button switch MTCF-10/Y/S
Part number: MTCF-10■/Y/S Micro-Travel Switch
Install diameter: 16MM 19MM 22MM
Shape: Flat head
Function: Momentary (1NO) or latching (1NO)
Terminal: 30CM wire
Crust material: Stainless steel
IP rating: IP65
Temperature: – 25 to 55 Degree
High Current： 1A
Operating distance: 0.5mm
